UF-019 Triangular

Home » Walther Couplings » Manual Couplings: Standard » Non-Interchangable (UF Series) » UF-019 Triangular
Need A Quote?

Coupling Information

There are three basic types of UF-019 coupling. Part numbers for each are listed below. Each type is available in a square and a triangular shape to ensure non-interchangeability.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) UF-019-0-..-DR. UF-019-2-..-DR.
No valves (thru type) N/A UF-019-1-..-DR.

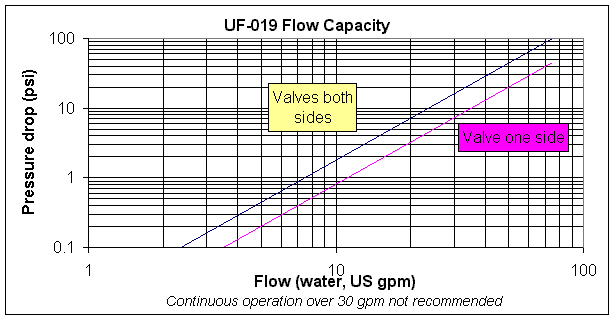

Flow Capacity

Flow Capacity for UF-019 Triangular

Maxbar logo

Triangular Shape: 3/4" BSPP(M), Self-sealing Coupling

Partial Part Number: UF-019-0-WR026-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-WR026-21-1-DR
 UF-019-0-WR026-21-2-DR
 UF-019-0-WR026-21-4-DR
Brass, chrome plated UF-019-0-WR026-22-1-DR
 UF-019-0-WR026-22-2-DR
 UF-019-0-WR026-22-4-DR
Steel, 316 stainless UF-019-0-WR026-01-1-DR
 UF-019-0-WR026-01-2-DR
 UF-019-0-WR026-01-4-DR
Brass, electroless nickel pl. UF-019-0-WR026-24-1-DR
 UF-019-0-WR026-24-2-DR
 UF-019-0-WR026-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 3/4" BSPP(M), Self-sealing Nipple

Partial Part Number: UF-019-2-WR026-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-WR026-21-1-DR
 UF-019-2-WR026-21-2-DR
 UF-019-2-WR026-21-4-DR
Brass, chrome plated UF-019-2-WR026-22-1-DR
 UF-019-2-WR026-22-2-DR
 UF-019-2-WR026-22-4-DR
Steel, 316 stainless UF-019-2-WR026-01-1-DR
 UF-019-2-WR026-01-2-DR
 UF-019-2-WR026-01-4-DR
Brass, electroless nickel pl. UF-019-2-WR026-24-1-DR
 UF-019-2-WR026-24-2-DR
 UF-019-2-WR026-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 3/4" BSPP(M), Thru type Nipple

Partial Part Number: UF-019-1-WR026-..

Find complete part numbers below:

Material Part Number
Brass, passivated UF-019-1-WR026-21-DR
Brass, chrome plated UF-019-1-WR026-22-DR
Steel, 316 stainless UF-019-1-WR026-01-DR
Brass, electroless nickel pl. UF-019-1-WR026-24-DR
Standard materials in bold. Other shapes, materials available.
Maxbar logo

Triangular Shape: 1" BSPP(M), Self-sealing Coupling

Partial Part Number: UF-019-0-WR033-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-WR033-21-1-DR
 UF-019-0-WR033-21-2-DR
 UF-019-0-WR033-21-4-DR
Brass, chrome plated UF-019-0-WR033-22-1-DR
 UF-019-0-WR033-22-2-DR
 UF-019-0-WR033-22-4-DR
Steel, 316 stainless UF-019-0-WR033-01-1-DR
 UF-019-0-WR033-01-2-DR
 UF-019-0-WR033-01-4-DR
Brass, electroless nickel pl. UF-019-0-WR033-24-1-DR
 UF-019-0-WR033-24-2-DR
 UF-019-0-WR033-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1" BSPP(M), Self-sealing Nipple

Partial Part Number: UF-019-2-WR033-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-WR033-21-1-DR
 UF-019-2-WR033-21-2-DR
 UF-019-2-WR033-21-4-DR
Brass, chrome plated UF-019-2-WR033-22-1-DR
 UF-019-2-WR033-22-2-DR
 UF-019-2-WR033-22-4-DR
Steel, 316 stainless UF-019-2-WR033-01-1-DR
 UF-019-2-WR033-01-2-DR
 UF-019-2-WR033-01-4-DR
Brass, electroless nickel pl. UF-019-2-WR033-24-1-DR
 UF-019-2-WR033-24-2-DR
 UF-019-2-WR033-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 3/4" BSPP(F), Self-sealing Coupling

Partial Part Number: UF-019-0-WR526-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-WR526-21-1-DR
 UF-019-0-WR526-21-2-DR
 UF-019-0-WR526-21-4-DR
Brass, chrome plated UF-019-0-WR526-22-1-DR
 UF-019-0-WR526-22-2-DR
 UF-019-0-WR526-22-4-DR
Steel, 316 stainless UF-019-0-WR526-01-1-DR
 UF-019-0-WR526-01-2-DR
 UF-019-0-WR526-01-4-DR
Brass, electroless nickel pl. UF-019-0-WR526-24-1-DR
 UF-019-0-WR526-24-2-DR
 UF-019-0-WR526-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 3/4" BSPP(F), Self-sealing Nipple

Partial Part Number: UF-019-2-WR526-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-WR526-21-1-DR
 UF-019-2-WR526-21-2-DR
 UF-019-2-WR526-21-4-DR
Brass, chrome plated UF-019-2-WR526-22-1-DR
 UF-019-2-WR526-22-2-DR
 UF-019-2-WR526-22-4-DR
Steel, 316 stainless UF-019-2-WR526-01-1-DR
 UF-019-2-WR526-01-2-DR
 UF-019-2-WR526-01-4-DR
Brass, electroless nickel pl. UF-019-2-WR526-24-1-DR
 UF-019-2-WR526-24-2-DR
 UF-019-2-WR526-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" BSPP(F), Self-sealing Coupling

Partial Part Number: UF-019-0-WR533-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-WR533-21-1-DR
 UF-019-0-WR533-21-2-DR
 UF-019-0-WR533-21-4-DR
Brass, chrome plated UF-019-0-WR533-22-1-DR
 UF-019-0-WR533-22-2-DR
 UF-019-0-WR533-22-4-DR
Steel, 316 stainless UF-019-0-WR533-01-1-DR
 UF-019-0-WR533-01-2-DR
 UF-019-0-WR533-01-4-DR
Brass, electroless nickel pl. UF-019-0-WR533-24-1-DR
 UF-019-0-WR533-24-2-DR
 UF-019-0-WR533-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1" BSPP(F), Self-sealing Nipple

Partial Part Number: UF-019-2-WR533-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-WR533-21-1-DR
 UF-019-2-WR533-21-2-DR
 UF-019-2-WR533-21-4-DR
Brass, chrome plated UF-019-2-WR533-22-1-DR
 UF-019-2-WR533-22-2-DR
 UF-019-2-WR533-22-4-DR
Steel, 316 stainless UF-019-2-WR533-01-1-DR
 UF-019-2-WR533-01-2-DR
 UF-019-2-WR533-01-4-DR
Brass, electroless nickel pl. UF-019-2-WR533-24-1-DR
 UF-019-2-WR533-24-2-DR
 UF-019-2-WR533-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" BSPP(F), Thru type Nipple

Partial Part Number: UF-019-1-WR533-..

Find complete part numbers below:

Material Part Number
Brass, passivated UF-019-1-WR533-21-DR
Brass, chrome plated UF-019-1-WR533-22-DR
Steel, 316 stainless UF-019-1-WR533-01-DR
Brass, electroless nickel pl. UF-019-1-WR533-24-DR
Standard materials in bold. Other shapes, materials available.
Maxbar logo

Triangular Shape: 3/4" BSPP(M), Self-sealing Coupling

Partial Part Number: UF-019-0-NP026-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-NP026-21-1-DR
 UF-019-0-NP026-21-2-DR
 UF-019-0-NP026-21-4-DR
Brass, chrome plated UF-019-0-NP026-22-1-DR
 UF-019-0-NP026-22-2-DR
 UF-019-0-NP026-22-4-DR
Steel, 316 stainless UF-019-0-NP026-01-1-DR
 UF-019-0-NP026-01-2-DR
 UF-019-0-NP026-01-4-DR
Brass, electroless nickel pl. UF-019-0-NP026-24-1-DR
 UF-019-0-NP026-24-2-DR
 UF-019-0-NP026-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 3/4" BSPP(M), Self-sealing Nipple

Partial Part Number: UF-019-2-NP026-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-NP026-21-1-DR
 UF-019-2-NP026-21-2-DR
 UF-019-2-NP026-21-4-DR
Brass, chrome plated UF-019-2-NP026-22-1-DR
 UF-019-2-NP026-22-2-DR
 UF-019-2-NP026-22-4-DR
Steel, 316 stainless UF-019-2-NP026-01-1-DR
 UF-019-2-NP026-01-2-DR
 UF-019-2-NP026-01-4-DR
Brass, electroless nickel pl. UF-019-2-NP026-24-1-DR
 UF-019-2-NP026-24-2-DR
 UF-019-2-NP026-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 3/4" BSPP(M), Thru type Nipple

Partial Part Number: UF-019-1-NP026-..

Find complete part numbers below:

Material Part Number
Brass, passivated UF-019-1-NP026-21-DR
Brass, chrome plated UF-019-1-NP026-22-DR
Steel, 316 stainless UF-019-1-NP026-01-DR
Brass, electroless nickel pl. UF-019-1-NP026-24-DR
Standard materials in bold. Other shapes, materials available.
Maxbar logo

Triangular Shape: 1" BSPP(M), Self-sealing Coupling

Partial Part Number: UF-019-0-NP033-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-NP033-21-1-DR
 UF-019-0-NP033-21-2-DR
 UF-019-0-NP033-21-4-DR
Brass, chrome plated UF-019-0-NP033-22-1-DR
 UF-019-0-NP033-22-2-DR
 UF-019-0-NP033-22-4-DR
Steel, 316 stainless UF-019-0-NP033-01-1-DR
 UF-019-0-NP033-01-2-DR
 UF-019-0-NP033-01-4-DR
Brass, electroless nickel pl. UF-019-0-NP033-24-1-DR
 UF-019-0-NP033-24-2-DR
 UF-019-0-NP033-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1" BSPP(M), Self-sealing Nipple

Partial Part Number: UF-019-2-NP033-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-NP033-21-1-DR
 UF-019-2-NP033-21-2-DR
 UF-019-2-NP033-21-4-DR
Brass, chrome plated UF-019-2-NP033-22-1-DR
 UF-019-2-NP033-22-2-DR
 UF-019-2-NP033-22-4-DR
Steel, 316 stainless UF-019-2-NP033-01-1-DR
 UF-019-2-NP033-01-2-DR
 UF-019-2-NP033-01-4-DR
Brass, electroless nickel pl. UF-019-2-NP033-24-1-DR
 UF-019-2-NP033-24-2-DR
 UF-019-2-NP033-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 3/4" BSPP(F), Self-sealing Coupling

Partial Part Number: UF-019-0-NP526-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-NP526-21-1-DR
 UF-019-0-NP526-21-2-DR
 UF-019-0-NP526-21-4-DR
Brass, chrome plated UF-019-0-NP526-22-1-DR
 UF-019-0-NP526-22-2-DR
 UF-019-0-NP526-22-4-DR
Steel, 316 stainless UF-019-0-NP526-01-1-DR
 UF-019-0-NP526-01-2-DR
 UF-019-0-NP526-01-4-DR
Brass, electroless nickel pl. UF-019-0-NP526-24-1-DR
 UF-019-0-NP526-24-2-DR
 UF-019-0-NP526-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 3/4" BSPP(F), Self-sealing Nipple

Partial Part Number: UF-019-2-NP526-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-NP526-21-1-DR
 UF-019-2-NP526-21-2-DR
 UF-019-2-NP526-21-4-DR
Brass, chrome plated UF-019-2-NP526-22-1-DR
 UF-019-2-NP526-22-2-DR
 UF-019-2-NP526-22-4-DR
Steel, 316 stainless UF-019-2-NP526-01-1-DR
 UF-019-2-NP526-01-2-DR
 UF-019-2-NP526-01-4-DR
Brass, electroless nickel pl. UF-019-2-NP526-24-1-DR
 UF-019-2-NP526-24-2-DR
 UF-019-2-NP526-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" BSPP(F), Self-sealing Coupling

Partial Part Number: UF-019-0-NP533-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-NP533-21-1-DR
 UF-019-0-NP533-21-2-DR
 UF-019-0-NP533-21-4-DR
Brass, chrome plated UF-019-0-NP533-22-1-DR
 UF-019-0-NP533-22-2-DR
 UF-019-0-NP533-22-4-DR
Steel, 316 stainless UF-019-0-NP533-01-1-DR
 UF-019-0-NP533-01-2-DR
 UF-019-0-NP533-01-4-DR
Brass, electroless nickel pl. UF-019-0-NP533-24-1-DR
 UF-019-0-NP533-24-2-DR
 UF-019-0-NP533-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1" BSPP(F), Self-sealing Nipple

Partial Part Number: UF-019-2-NP533-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-NP533-21-1-DR
 UF-019-2-NP533-21-2-DR
 UF-019-2-NP533-21-4-DR
Brass, chrome plated UF-019-2-NP533-22-1-DR
 UF-019-2-NP533-22-2-DR
 UF-019-2-NP533-22-4-DR
Steel, 316 stainless UF-019-2-NP533-01-1-DR
 UF-019-2-NP533-01-2-DR
 UF-019-2-NP533-01-4-DR
Brass, electroless nickel pl. UF-019-2-NP533-24-1-DR
 UF-019-2-NP533-24-2-DR
 UF-019-2-NP533-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" BSPP(F), Thru type Nipple

Partial Part Number: UF-019-1-NP533-..

Find complete part numbers below:

Material Part Number
Brass, passivated UF-019-1-NP533-21-DR
Brass, chrome plated UF-019-1-NP533-22-DR
Steel, 316 stainless UF-019-1-NP533-01-DR
Brass, electroless nickel pl. UF-019-1-NP533-24-DR
Standard materials in bold. Other shapes, materials available.
Maxbar logo

Triangular Shape: 3/4" Hose Barb (19mm), Self-sealing Coupling

Partial Part Number: UF-019-0-SL019-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-SL019-21-1-DR
 UF-019-0-SL019-21-2-DR
 UF-019-0-SL019-21-4-DR
Brass, chrome plated UF-019-0-SL019-22-1-DR
 UF-019-0-SL019-22-2-DR
 UF-019-0-SL019-22-4-DR
Steel, 316 stainless UF-019-0-SL019-01-1-DR
 UF-019-0-SL019-01-2-DR
 UF-019-0-SL019-01-4-DR
Brass, electroless nickel pl. UF-019-0-SL019-24-1-DR
 UF-019-0-SL019-24-2-DR
 UF-019-0-SL019-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 3/4" Hose Barb (19mm), Self-sealing Nipple

Partial Part Number: UF-019-2-SL019-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-SL019-21-1-DR
 UF-019-2-SL019-21-2-DR
 UF-019-2-SL019-21-4-DR
Brass, chrome plated UF-019-2-SL019-22-1-DR
 UF-019-2-SL019-22-2-DR
 UF-019-2-SL019-22-4-DR
Steel, 316 stainless UF-019-2-SL019-01-1-DR
 UF-019-2-SL019-01-2-DR
 UF-019-2-SL019-01-4-DR
Brass, electroless nickel pl. UF-019-2-SL019-24-1-DR
 UF-019-2-SL019-24-2-DR
 UF-019-2-SL019-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" Hose Barb (25mm), Self-sealing Coupling

Partial Part Number: UF-019-0-SL025-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-SL025-21-1-DR
 UF-019-0-SL025-21-2-DR
 UF-019-0-SL025-21-4-DR
Brass, chrome plated UF-019-0-SL025-22-1-DR
 UF-019-0-SL025-22-2-DR
 UF-019-0-SL025-22-4-DR
Steel, 316 stainless UF-019-0-SL025-01-1-DR
 UF-019-0-SL025-01-2-DR
 UF-019-0-SL025-01-4-DR
Brass, electroless nickel pl. UF-019-0-SL025-24-1-DR
 UF-019-0-SL025-24-2-DR
 UF-019-0-SL025-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1" Hose Barb (25mm), Self-sealing Nipple

Partial Part Number: UF-019-2-SL025-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-SL025-21-1-DR
 UF-019-2-SL025-21-2-DR
 UF-019-2-SL025-21-4-DR
Brass, chrome plated UF-019-2-SL025-22-1-DR
 UF-019-2-SL025-22-2-DR
 UF-019-2-SL025-22-4-DR
Steel, 316 stainless UF-019-2-SL025-01-1-DR
 UF-019-2-SL025-01-2-DR
 UF-019-2-SL025-01-4-DR
Brass, electroless nickel pl. UF-019-2-SL025-24-1-DR
 UF-019-2-SL025-24-2-DR
 UF-019-2-SL025-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

Triangular Shape: 1" Hose Barb (25mm), Thru type Nipple

Partial Part Number: UF-019-1-SL025-..

Find complete part numbers below:

Material Part Number
Brass, passivated UF-019-1-SL025-21-DR
Brass, chrome plated UF-019-1-SL025-22-DR
Steel, 316 stainless UF-019-1-SL025-01-DR
Brass, electroless nickel pl. UF-019-1-SL025-24-DR
Standard materials in bold. Other shapes, materials available.
Maxbar logo

Triangular Shape: 1-3/32" Hose Barb (28mm), Self-sealing Coupling

Partial Part Number: UF-019-0-SL028-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-0-SL028-21-1-DR
 UF-019-0-SL028-21-2-DR
 UF-019-0-SL028-21-4-DR
Brass, chrome plated UF-019-0-SL028-22-1-DR
 UF-019-0-SL028-22-2-DR
 UF-019-0-SL028-22-4-DR
Steel, 316 stainless UF-019-0-SL028-01-1-DR
 UF-019-0-SL028-01-2-DR
 UF-019-0-SL028-01-4-DR
Brass, electroless nickel pl. UF-019-0-SL028-24-1-DR
 UF-019-0-SL028-24-2-DR
 UF-019-0-SL028-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

Triangular Shape: 1-3/32" Hose Barb (28mm), Self-sealing Nipple

Partial Part Number: UF-019-2-SL028-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, passivated UF-019-2-SL028-21-1-DR
 UF-019-2-SL028-21-2-DR
 UF-019-2-SL028-21-4-DR
Brass, chrome plated UF-019-2-SL028-22-1-DR
 UF-019-2-SL028-22-2-DR
 UF-019-2-SL028-22-4-DR
Steel, 316 stainless UF-019-2-SL028-01-1-DR
 UF-019-2-SL028-01-2-DR
 UF-019-2-SL028-01-4-DR
Brass, electroless nickel pl. UF-019-2-SL028-24-1-DR
 UF-019-2-SL028-24-2-DR
 UF-019-2-SL028-24-4-DR
Standard materials in bold. Other shapes, materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Contact one of our sales representatives today
to inquire about a quote from Maxbar - Walther Precision USA
or call us today at 513.527.4100


Maxbar ISO CertificationsMaxbar OSHA
