Coupling Information

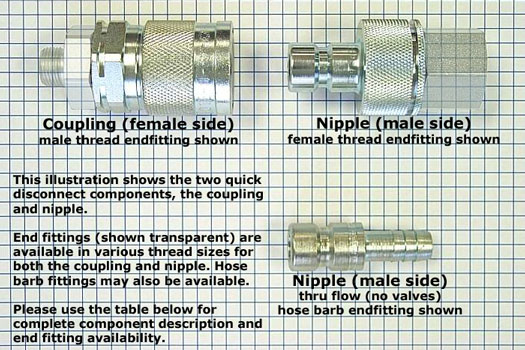

There are three basic types of SP-006 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple     (Male side)
Standard (with valves) SP-006-0-... SP-006-2-...
No valves (thru type) Use SP-006-0-... with -OV option SP-006-1-...
SP-006 Couplings

End Fittings

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
BSPP(M) 1/8" -- -- SP-006-1-WR010-..
BSPP(M) 1/4" SP-006-0-WR013-.. SP-006-2-WR013-.. SP-006-1-WR013-..
BSPP(M) 3/8" SP-006-0-WR017-.. SP-006-2-WR017-.. SP-006-1-WR017-..
BSPP(M) 1/2" SP-006-0-WR021-.. SP-006-2-WR021-.. --

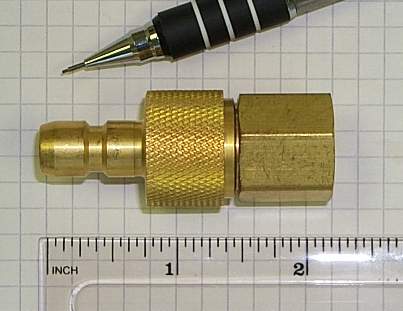

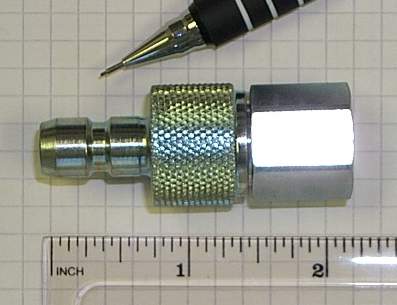

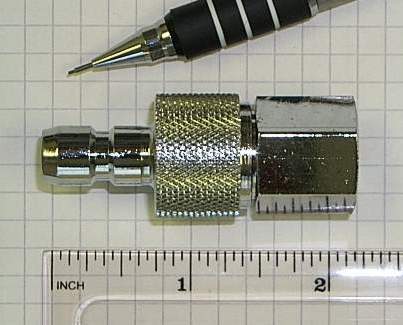

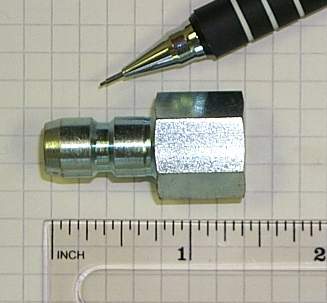

BSPP(F) 1/4" SP-006-0-WR513-.. SP-006-2-WR513-.. SP-006-1-WR513-..

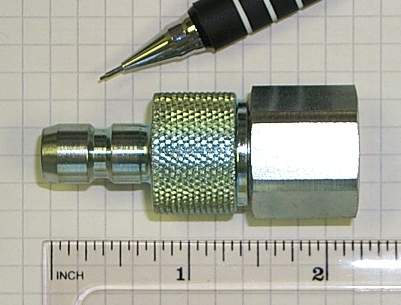

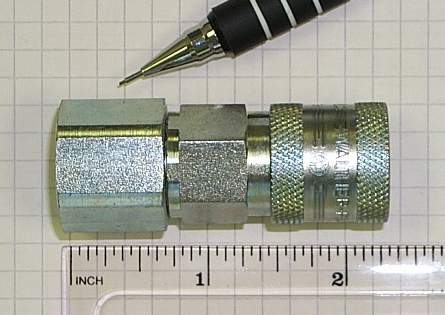

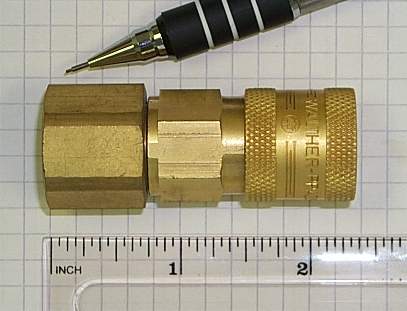

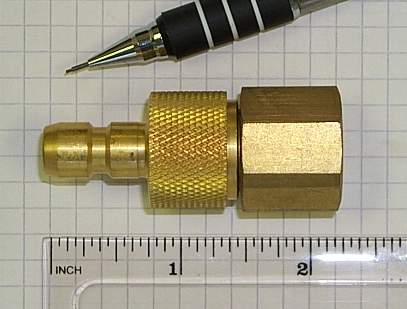

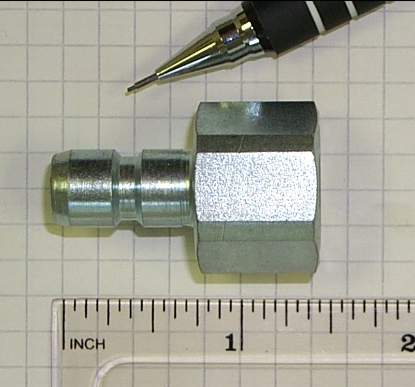

BSPP(F) 3/8" SP-006-0-WR517-.. SP-006-2-WR517-.. SP-006-1-WR517-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
NPT(M) 1/8" -- -- SP-006-1-NP010-..

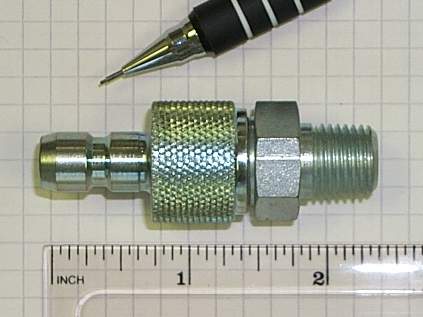

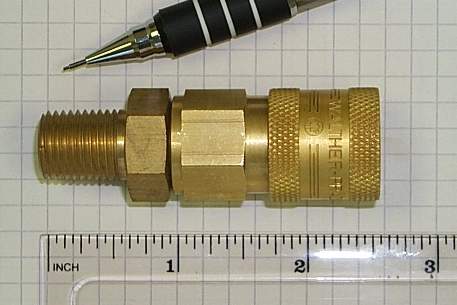

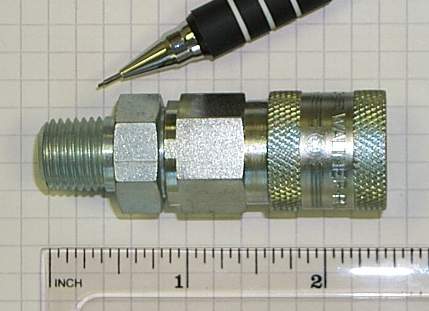

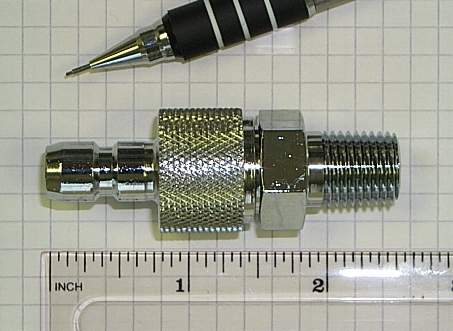

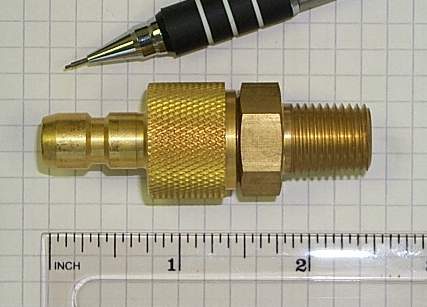

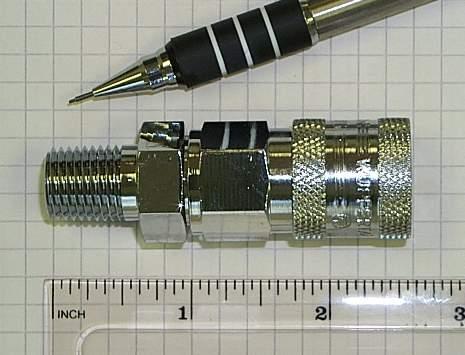

NPT(M) 1/4" SP-006-0-NP013-.. SP-006-2-NP013-.. SP-006-1-NP013-..

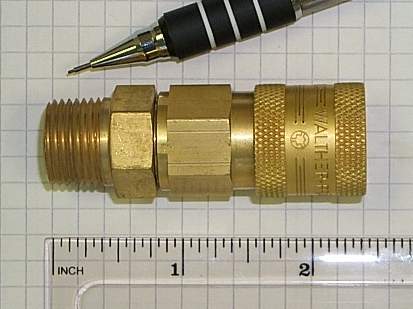

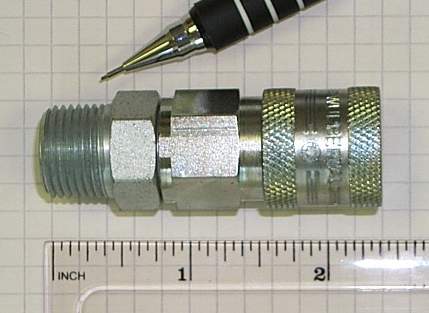

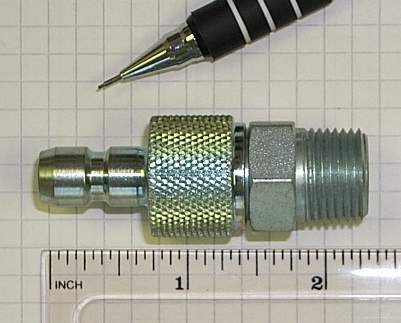

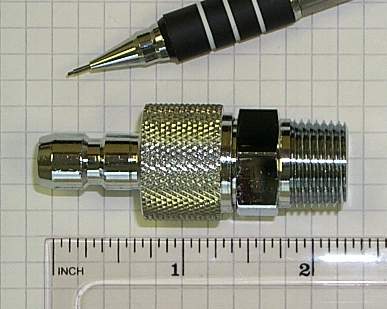

NPT(M) 3/8" SP-006-0-NP017-.. SP-006-2-NP017-.. SP-006-1-NP017-..

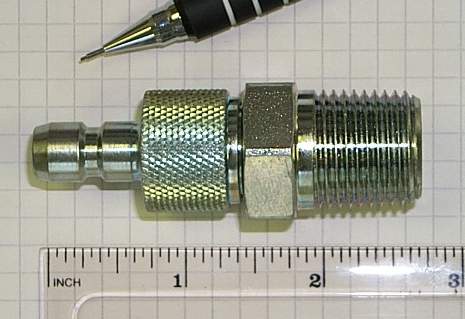

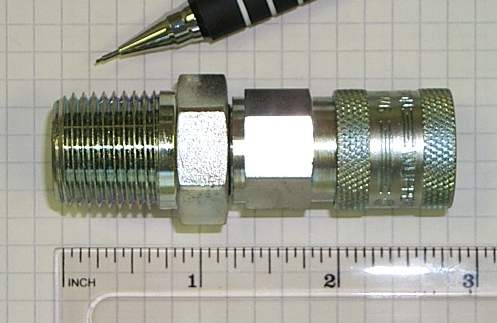

NPT(M) 1/2" SP-006-0-NP021-.. SP-006-2-NP021-.. --

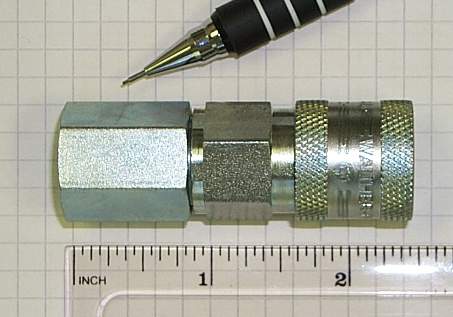

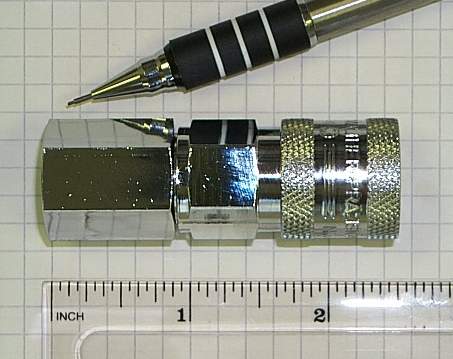

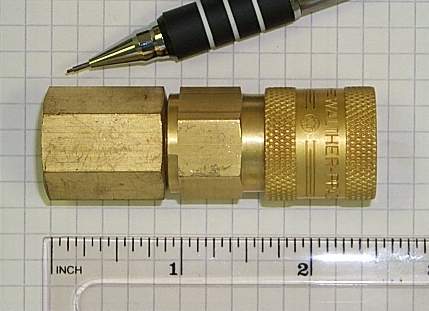

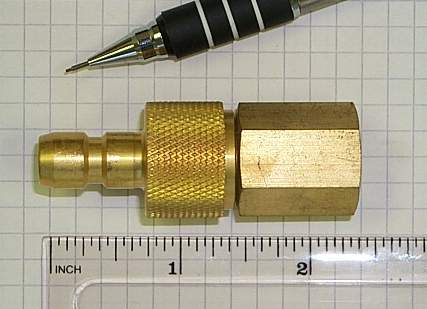

NPT(F) 1/4" SP-006-0-NP513-.. SP-006-2-NP513-.. SP-006-1-NP513-..

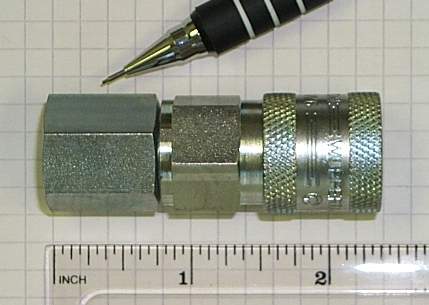

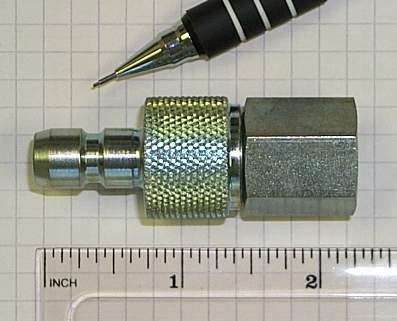

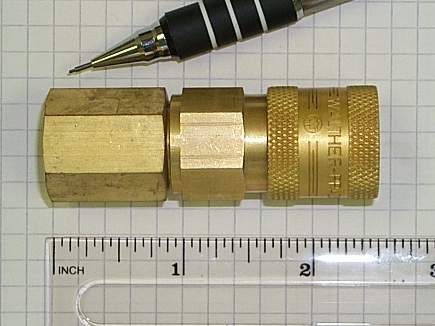

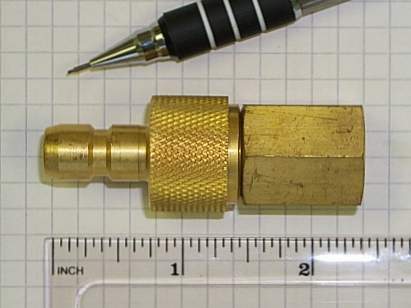

NPT(F) 3/8" SP-006-0-NP517-.. SP-006-2-NP517-.. SP-006-1-NP517-..
BSPP(M) with 60° Female cone (usually to fit hose ends with BSP swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple

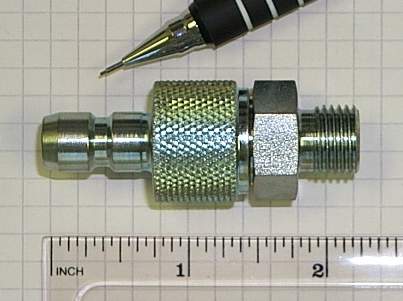

BSPP(M) 1/4" w/60° F cone  SP-006-0-VR013-.. SP-006-2-VR013-.. --

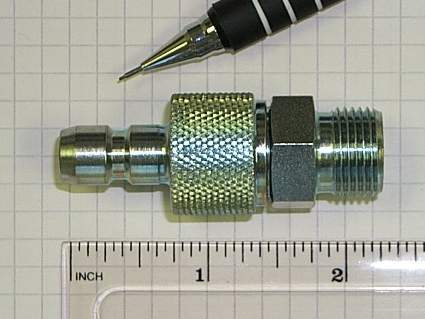

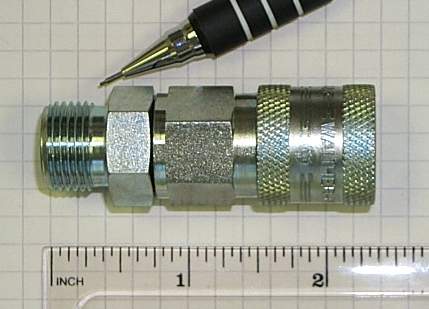

BSPP(M) 3/8" w/60° F cone  SP-006-0-VR017-.. SP-006-2-VR017-.. --
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple

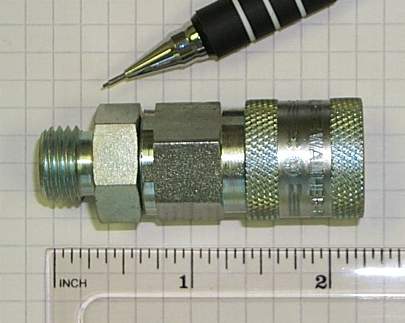

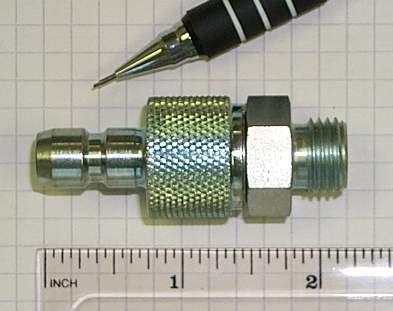

M14 x 1.5 SP-006-0-D0614-.. SP-006-2-D0614-.. --
M14 x 1.5 bulkhead mount SP-006-0-DV008-.. SP-006-2-DV008-.. --
EO (Ermeto) to fit tube & ferrule
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
M12 x 1.5

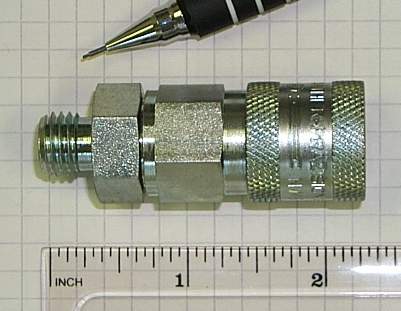

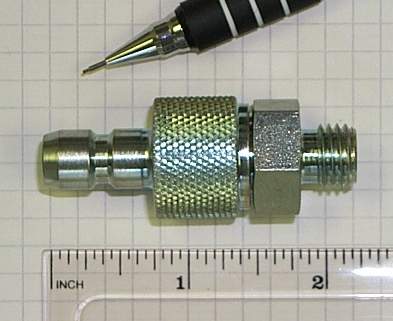

6mm tube OD (Light)		 SP-006-0-L0612-.. SP-006-2-L0612-.. --
M14 x 1.5

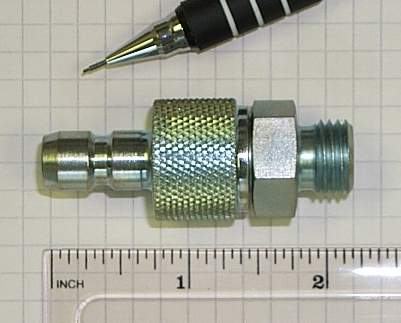

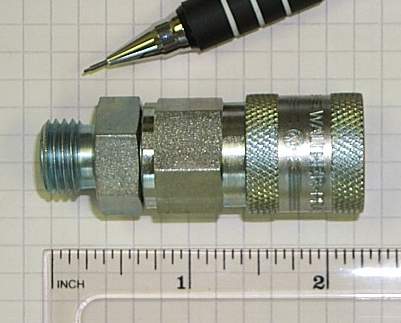

8mm tube OD (Light)		 SP-006-0-L0814-.. SP-006-2-L0814-.. --

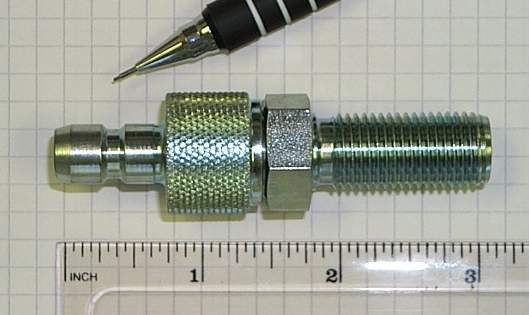

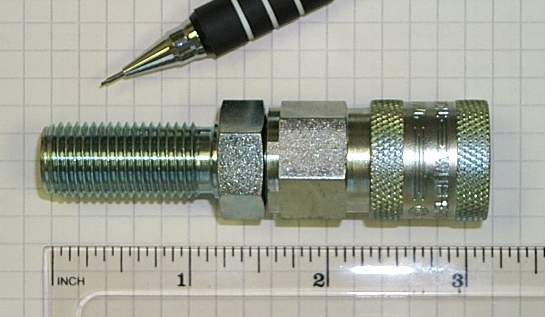

As above,  bulkhead mount SP-006-0-LV008-.. SP-006-2-LV008-.. --
M16 x 1.5

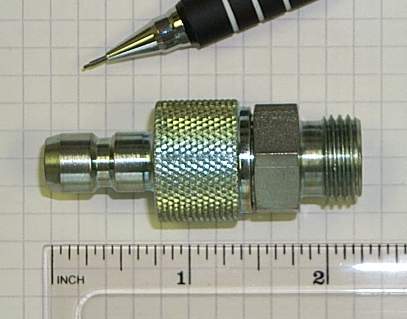

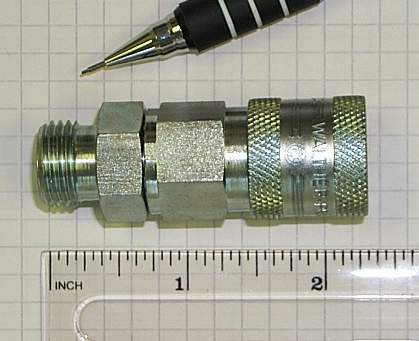

10mm tube OD (Light)		 SP-006-0-L1016-.. SP-006-2-L1016-.. --
As above,  bulkhead mount SP-006-0-XX211-.. SP-006-2-XX211-.. --

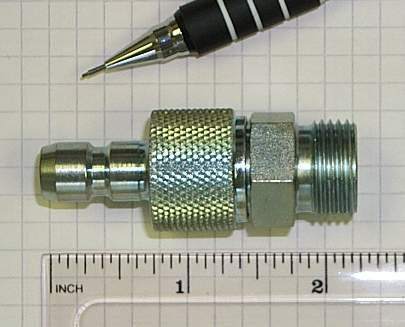

M18 x 1.5

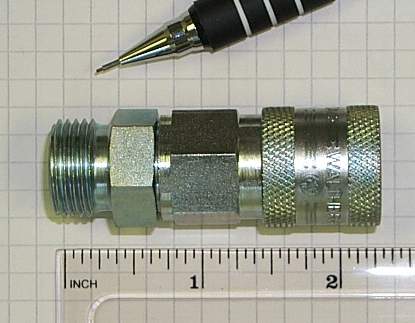

12mm OD tube (Light)		 SP-006-0-L1218-.. SP-006-2-L1218-.. --
M16 x 1.5
8mm tube OD (Heavy)		 SP-006-0-S0816-.. SP-006-2-S0816-.. --
M18 x 1.5

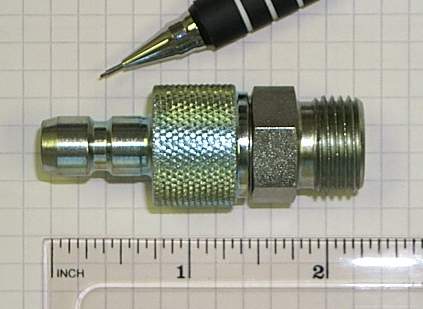

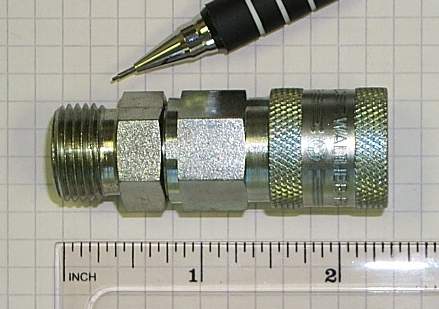

10mm OD tube (Heavy)		 SP-006-0-S1018-.. SP-006-2-S1018-.. --
M20 x 1.5
12mm OD tube (Heavy)		 SP-006-0-S1220-.. SP-006-2-S1220-.. --
Hose barbs
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple

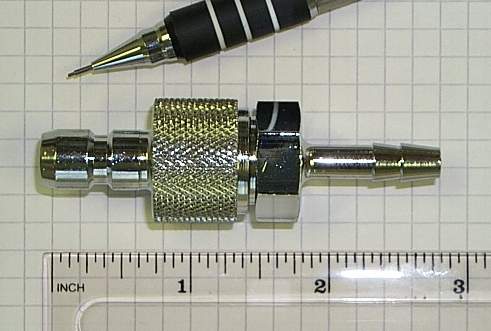

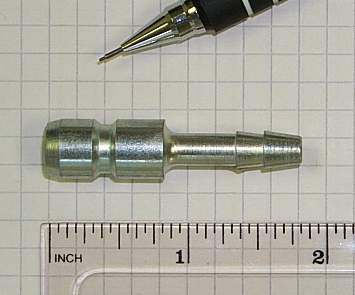

Hose Barb 1/4" (6mm) SP-006-0-SL006-.. SP-006-2-SL006-.. SP-006-1-SL006-..

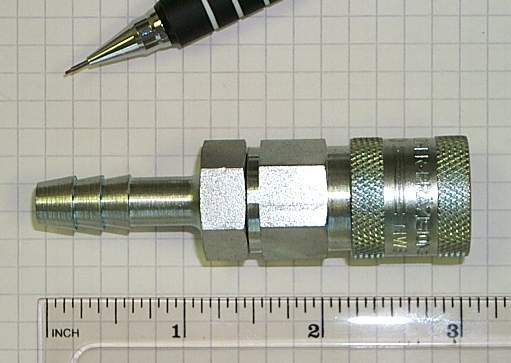

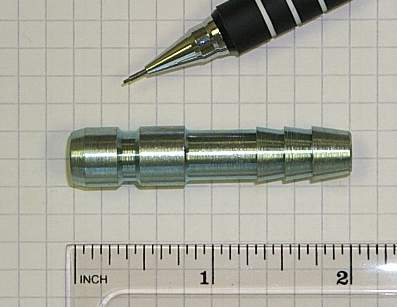

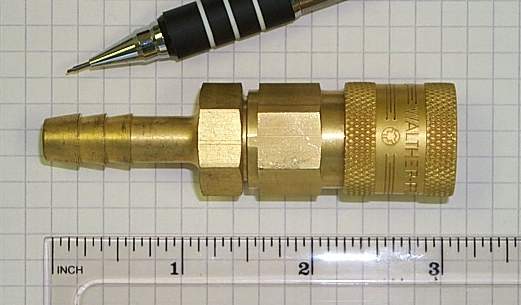

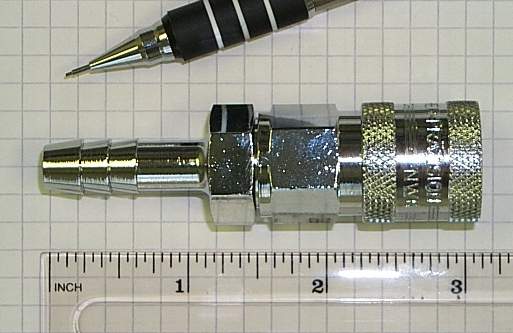

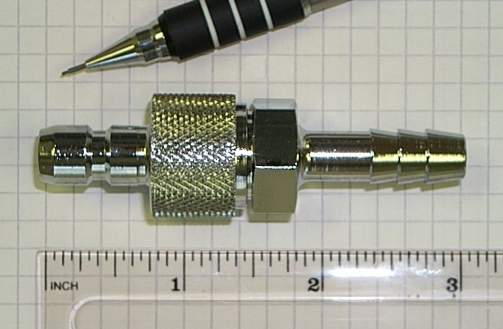

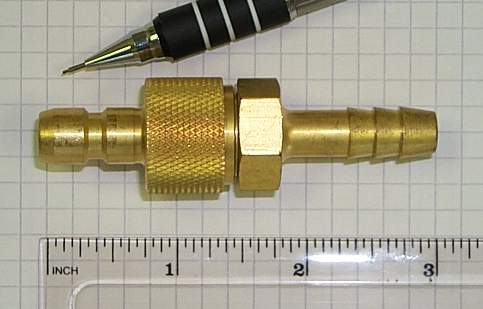

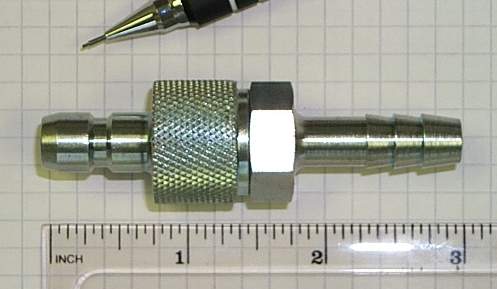

Hose Barb 11/32" (9mm) SP-006-0-SL009-.. SP-006-2-SL009-.. SP-006-1-SL009-..

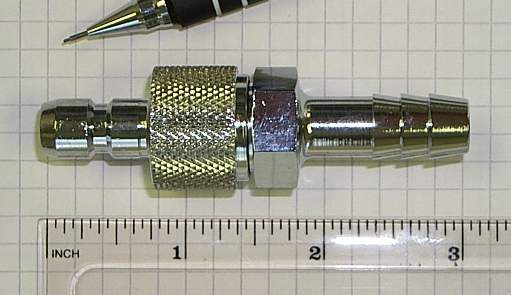

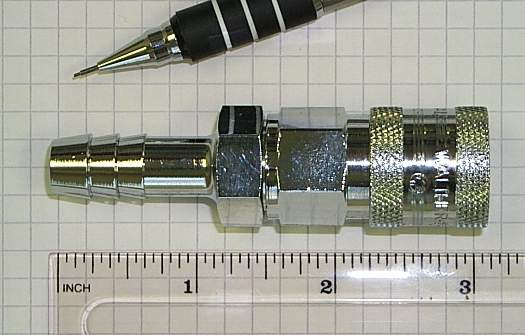

Hose Barb 7/16" (11mm) SP-006-0-SL011-.. SP-006-2-SL011-.. --

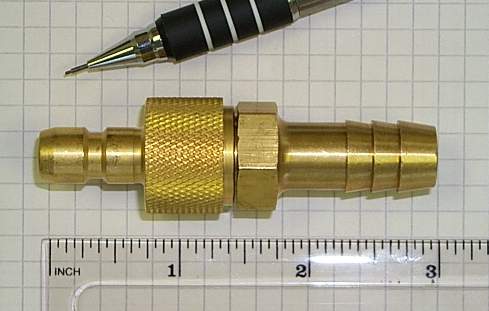

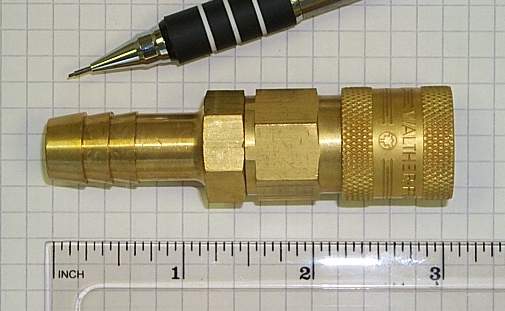

Hose Barb 1/2" (13mm) SP-006-0-SL013-.. SP-006-2-SL013-.. --

Dust Caps & Dust Plugs - Part numbers for Series SP-006

Material Plugs for Couplings (Female side) Caps for Adapters (Male side)
Non-pressure retaining1 SP-006-6-74-KU SP-006-5-74-KU
Pressure retaining2 SP-006-6-11 SP-006-5-11-1 (Nitrile)SP-006-5-11-2 (Viton) SP-006-5-11-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey)2. Zinc-plated steel body, nickel-plated steel chain and retaining ring

Flow Capacity

Flow Capacity for LP-006

Maxbar logo

1/8 BSPP(M), Thru type Nipple

Partial Part Number: SP-006-1-WR010-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-WR010-11
 --
Brass, passivated SP-006-1-WR010-21
 --
Brass, chrome plated SP-006-1-WR010-22
 --
Steel, 316 stainless SP-006-1-WR010-01
 --
Aluminum, anodized SP-006-1-WR010-32
 --
Steel, electroless nickel pl. SP-006-1-WR010-13
 --
Brass, electroless nickel pl. SP-006-1-WR010-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(M), Self-sealing Coupling

Partial Part Number: SP-006-0-WR013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-WR013-11-1
 SP-006-0-WR013-11-2
 SP-006-0-WR013-11-4
 --

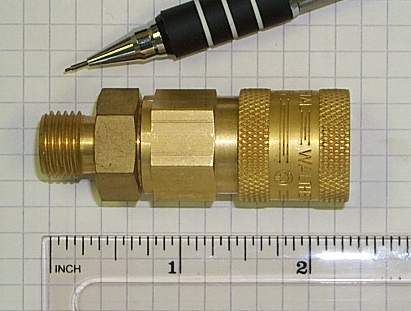

Brass, passivated SP-006-0-WR013-21-1
 SP-006-0-WR013-21-2
 SP-006-0-WR013-21-4
 SP-006-0-WR013-21
Brass, chrome plated SP-006-0-WR013-22-1
 SP-006-0-WR013-22-2
 SP-006-0-WR013-22-4
 SP-006-0-WR013-22
Steel, 316 stainless SP-006-0-WR013-01-1
 SP-006-0-WR013-01-2
 SP-006-0-WR013-01-4
 --
Aluminum, anodized SP-006-0-WR013-32-1
 SP-006-0-WR013-32-2
 SP-006-0-WR013-32-4
 --
Steel, electroless nickel pl. SP-006-0-WR013-13-1
 SP-006-0-WR013-13-2
 SP-006-0-WR013-13-4
 --
Brass, electroless nickel pl. SP-006-0-WR013-24-1
 SP-006-0-WR013-24-2
 SP-006-0-WR013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

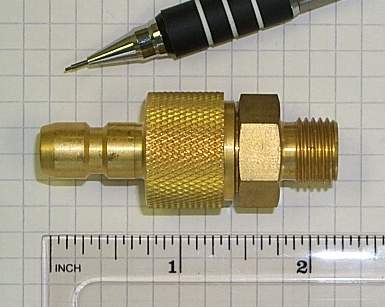

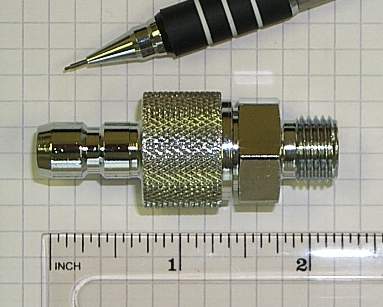

1/4" BSPP(M), Self-sealing Nipple

Partial Part Number: SP-006-2-WR013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-WR013-11-1
 SP-006-2-WR013-11-2
 SP-006-2-WR013-11-4
 --
Brass, passivated SP-006-2-WR013-21-1
 SP-006-2-WR013-21-2
 SP-006-2-WR013-21-4
 SP-006-2-WR013-21
Brass, chrome plated SP-006-2-WR013-22-1
 SP-006-2-WR013-22-2
 SP-006-2-WR013-22-4
 SP-006-2-WR013-22
Steel, 316 stainless SP-006-2-WR013-01-1
 SP-006-2-WR013-01-2
 SP-006-2-WR013-01-4
 --
Aluminum, anodized SP-006-2-WR013-32-1
 SP-006-2-WR013-32-2
 SP-006-2-WR013-32-4
 --
Steel, electroless nickel pl. SP-006-2-WR013-13-1
 SP-006-2-WR013-13-2
 SP-006-2-WR013-13-4
 --
Brass, electroless nickel pl. SP-006-2-WR013-24-1
 SP-006-2-WR013-24-2
 SP-006-2-WR013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

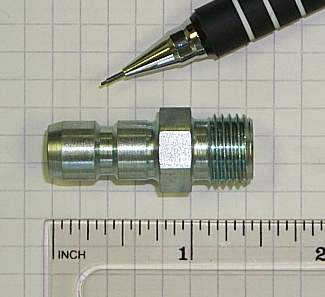

1/4" BSPP(M), Thru type Nipple

Partial Part Number: SP-006-1-WR013-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-WR013-11
 SP-006-1-WR013-11
Brass, passivated SP-006-1-WR013-21
 --
Brass, chrome plated SP-006-1-WR013-22
 --
Steel, 316 stainless SP-006-1-WR013-01
 --
Aluminum, anodized SP-006-1-WR013-32
 --
Steel, electroless nickel pl. SP-006-1-WR013-13
 --
Brass, electroless nickel pl. SP-006-1-WR013-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

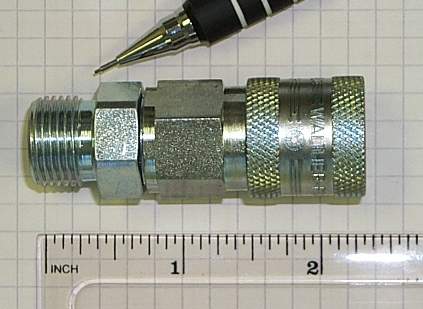

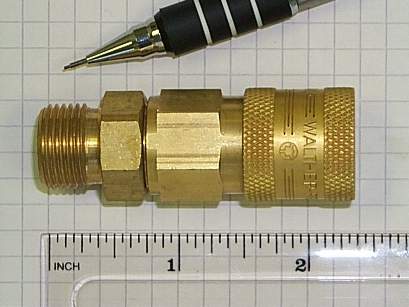

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: SP-006-0-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-WR017-11-1
 SP-006-0-WR017-11-2
 SP-006-0-WR017-11-4
 SP-006-0-WR017-11
Brass, passivated SP-006-0-WR017-21-1
 SP-006-0-WR017-21-2
 SP-006-0-WR017-21-4
 SP-006-0-WR017-21
Brass, chrome plated SP-006-0-WR017-22-1
 SP-006-0-WR017-22-2
 SP-006-0-WR017-22-4
 --
Steel, 316 stainless SP-006-0-WR017-01-1
 SP-006-0-WR017-01-2
 SP-006-0-WR017-01-4
 --
Aluminum, anodized SP-006-0-WR017-32-1
 SP-006-0-WR017-32-2
 SP-006-0-WR017-32-4
 --
Steel, electroless nickel pl. SP-006-0-WR017-13-1
 SP-006-0-WR017-13-2
 SP-006-0-WR017-13-4
 --
Brass, electroless nickel pl. SP-006-0-WR017-24-1
 SP-006-0-WR017-24-2
 SP-006-0-WR017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

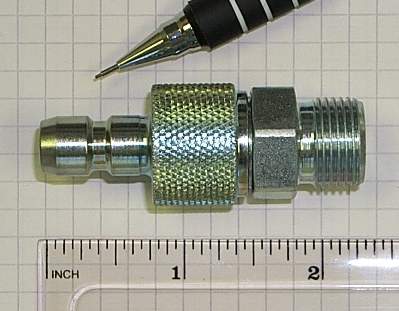

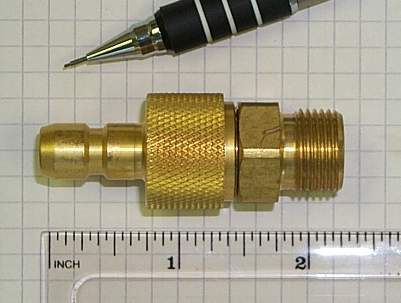

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: SP-006-2-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-WR017-11-1
 SP-006-2-WR017-11-2
 SP-006-2-WR017-11-4
 SP-006-2-WR017-11
Brass, passivated SP-006-2-WR017-21-1
 SP-006-2-WR017-21-2
 SP-006-2-WR017-21-4
 SP-006-2-WR017-21
Brass, chrome plated SP-006-2-WR017-22-1
 SP-006-2-WR017-22-2
 SP-006-2-WR017-22-4
 --
Steel, 316 stainless SP-006-2-WR017-01-1
 SP-006-2-WR017-01-2
 SP-006-2-WR017-01-4
 --
Aluminum, anodized SP-006-2-WR017-32-1
 SP-006-2-WR017-32-2
 SP-006-2-WR017-32-4
 --
Steel, electroless nickel pl. SP-006-2-WR017-13-1
 SP-006-2-WR017-13-2
 SP-006-2-WR017-13-4
 --
Brass, electroless nickel pl. SP-006-2-WR017-24-1
 SP-006-2-WR017-24-2
 SP-006-2-WR017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

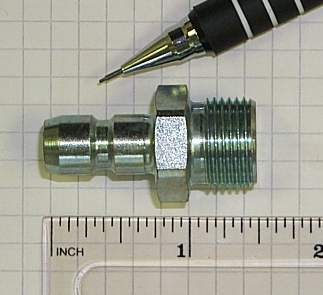

3/8" BSPP(M), Thru type Nipple

Partial Part Number: SP-006-1-WR017-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-WR017-11
 SP-006-1-WR017-11
Brass, passivated SP-006-1-WR017-21
 --
Brass, chrome plated SP-006-1-WR017-22
 --
Steel, 316 stainless SP-006-1-WR017-01
 --
Aluminum, anodized SP-006-1-WR017-32
 --
Steel, electroless nickel pl. SP-006-1-WR017-13
 --
Brass, electroless nickel pl. SP-006-1-WR017-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/2" BSPP(M), Self-sealing Coupling

Partial Part Number: SP-006-0-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-WR021-11-1
 SP-006-0-WR021-11-2
 SP-006-0-WR021-11-4
 --
Brass, passivated SP-006-0-WR021-21-1
 SP-006-0-WR021-21-2
 SP-006-0-WR021-21-4
 SP-006-0-WR021-21
Brass, chrome plated SP-006-0-WR021-22-1
 SP-006-0-WR021-22-2
 SP-006-0-WR021-22-4
 --
Steel, 316 stainless SP-006-0-WR021-01-1
 SP-006-0-WR021-01-2
 SP-006-0-WR021-01-4
 --
Aluminum, anodized SP-006-0-WR021-32-1
 SP-006-0-WR021-32-2
 SP-006-0-WR021-32-4
 --
Steel, electroless nickel pl. SP-006-0-WR021-13-1
 SP-006-0-WR021-13-2
 SP-006-0-WR021-13-4
 --
Brass, electroless nickel pl. SP-006-0-WR021-24-1
 SP-006-0-WR021-24-2
 SP-006-0-WR021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

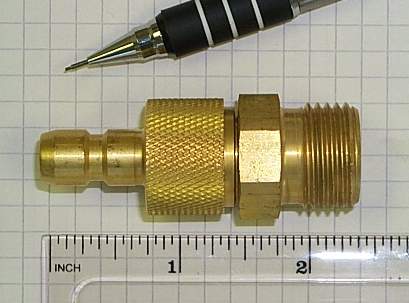

1/2" BSPP(M), Self-sealing Nipple

Partial Part Number: SP-006-2-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-WR021-11-1
 SP-006-2-WR021-11-2
 SP-006-2-WR021-11-4
 --
Brass, passivated SP-006-2-WR021-21-1
 SP-006-2-WR021-21-2
 SP-006-2-WR021-21-4
 SP-006-2-WR021-21
Brass, chrome plated SP-006-2-WR021-22-1
 SP-006-2-WR021-22-2
 SP-006-2-WR021-22-4
 --
Steel, 316 stainless SP-006-2-WR021-01-1
 SP-006-2-WR021-01-2
 SP-006-2-WR021-01-4
 --
Aluminum, anodized SP-006-2-WR021-32-1
 SP-006-2-WR021-32-2
 SP-006-2-WR021-32-4
 --
Steel, electroless nickel pl. SP-006-2-WR021-13-1
 SP-006-2-WR021-13-2
 SP-006-2-WR021-13-4
 --
Brass, electroless nickel pl. SP-006-2-WR021-24-1
 SP-006-2-WR021-24-2
 SP-006-2-WR021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

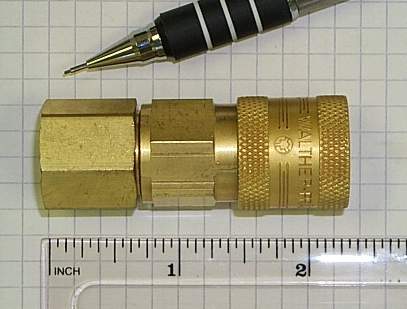

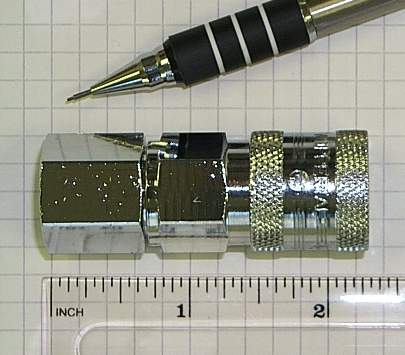

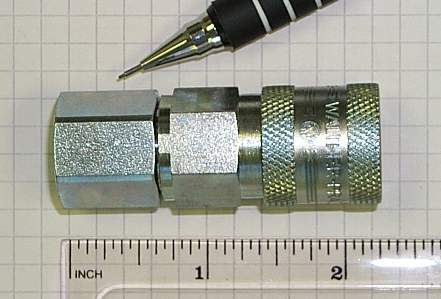

1/4" BSPP(F), Self-sealing Coupling

Partial Part Number: SP-006-0-WR513-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-WR513-11-1
 SP-006-0-WR513-11-2
 SP-006-0-WR513-11-4
 SP-006-0-WR513-11
Brass, passivated SP-006-0-WR513-21-1
 SP-006-0-WR513-21-2
 SP-006-0-WR513-21-4
 SP-006-0-WR513-21
Brass, chrome plated SP-006-0-WR513-22-1
 SP-006-0-WR513-22-2
 SP-006-0-WR513-22-4
 SP-006-0-WR513-22
Steel, 316 stainless SP-006-0-WR513-01-1
 SP-006-0-WR513-01-2
 SP-006-0-WR513-01-4
 --
Aluminum, anodized SP-006-0-WR513-32-1
 SP-006-0-WR513-32-2
 SP-006-0-WR513-32-4
 --
Steel, electroless nickel pl. SP-006-0-WR513-13-1
 SP-006-0-WR513-13-2
 SP-006-0-WR513-13-4
 --
Brass, electroless nickel pl. SP-006-0-WR513-24-1
 SP-006-0-WR513-24-2
 SP-006-0-WR513-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(F), Self-sealing Nipple

Partial Part Number: SP-006-2-WR513-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-WR513-11-1
 SP-006-2-WR513-11-2
 SP-006-2-WR513-11-4
 SP-006-2-WR513-11
Brass, passivated SP-006-2-WR513-21-1
 SP-006-2-WR513-21-2
 SP-006-2-WR513-21-4
 SP-006-2-WR513-21
Brass, chrome plated SP-006-2-WR513-22-1
 SP-006-2-WR513-22-2
 SP-006-2-WR513-22-4
 SP-006-2-WR513-22
Steel, 316 stainless SP-006-2-WR513-01-1
 SP-006-2-WR513-01-2
 SP-006-2-WR513-01-4
 --
Aluminum, anodized SP-006-2-WR513-32-1
 SP-006-2-WR513-32-2
 SP-006-2-WR513-32-4
 --
Steel, electroless nickel pl. SP-006-2-WR513-13-1
 SP-006-2-WR513-13-2
 SP-006-2-WR513-13-4
 --
Brass, electroless nickel pl. SP-006-2-WR513-24-1
 SP-006-2-WR513-24-2
 SP-006-2-WR513-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(F), Thru type Nipple

Partial Part Number: SP-006-1-WR513-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-WR513-11
 SP-006-1-WR513-11
Brass, passivated SP-006-1-WR513-21
 --
Brass, chrome plated SP-006-1-WR513-22
 --
Steel, 316 stainless SP-006-1-WR513-01
 --
Aluminum, anodized SP-006-1-WR513-32
 --
Steel, electroless nickel pl. SP-006-1-WR513-13
 --
Brass, electroless nickel pl. SP-006-1-WR513-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" BSPP(F), Self-sealing Coupling

Partial Part Number: SP-006-0-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-WR517-11-1
 SP-006-0-WR517-11-2
 SP-006-0-WR517-11-4
 SP-006-0-WR517-11
Brass, passivated SP-006-0-WR517-21-1
 SP-006-0-WR517-21-2
 SP-006-0-WR517-21-4
 SP-006-0-WR517-21
Brass, chrome plated SP-006-0-WR517-22-1
 SP-006-0-WR517-22-2
 SP-006-0-WR517-22-4
 --
Steel, 316 stainless SP-006-0-WR517-01-1
 SP-006-0-WR517-01-2
 SP-006-0-WR517-01-4
 --
Aluminum, anodized SP-006-0-WR517-32-1
 SP-006-0-WR517-32-2
 SP-006-0-WR517-32-4
 --
Steel, electroless nickel pl. SP-006-0-WR517-13-1
 SP-006-0-WR517-13-2
 SP-006-0-WR517-13-4
 --
Brass, electroless nickel pl. SP-006-0-WR517-24-1
 SP-006-0-WR517-24-2
 SP-006-0-WR517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" BSPP(F), Self-sealing Nipple

Partial Part Number: SP-006-2-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-WR517-11-1
 SP-006-2-WR517-11-2
 SP-006-2-WR517-11-4
 SP-006-2-WR517-11
Brass, passivated SP-006-2-WR517-21-1
 SP-006-2-WR517-21-2
 SP-006-2-WR517-21-4
 SP-006-2-WR517-21
Brass, chrome plated SP-006-2-WR517-22-1
 SP-006-2-WR517-22-2
 SP-006-2-WR517-22-4
 --
Steel, 316 stainless SP-006-2-WR517-01-1
 SP-006-2-WR517-01-2
 SP-006-2-WR517-01-4
 --
Aluminum, anodized SP-006-2-WR517-32-1
 SP-006-2-WR517-32-2
 SP-006-2-WR517-32-4
 --
Steel, electroless nickel pl. SP-006-2-WR517-13-1
 SP-006-2-WR517-13-2
 SP-006-2-WR517-13-4
 --
Brass, electroless nickel pl. SP-006-2-WR517-24-1
 SP-006-2-WR517-24-2
 SP-006-2-WR517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" BSPP(F), Thru type Nipple

Partial Part Number: SP-006-1-WR517-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-WR517-11
 SP-006-1-WR517-11
Brass, passivated SP-006-1-WR517-21
 --
Brass, chrome plated SP-006-1-WR517-22
 --
Steel, 316 stainless SP-006-1-WR517-01
 --
Aluminum, anodized SP-006-1-WR517-32
 --
Steel, electroless nickel pl. SP-006-1-WR517-13
 --
Brass, electroless nickel pl. SP-006-1-WR517-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/8" NPT(M), Thru type Nipple

Partial Part Number: SP-006-1-NP010-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-NP010-11
 --
Brass, passivated SP-006-1-NP010-21
 --
Brass, chrome plated SP-006-1-NP010-22
 --
Steel, 316 stainless SP-006-1-NP010-01
 --
Aluminum, anodized SP-006-1-NP010-32
 --
Steel, electroless nickel pl. SP-006-1-NP010-13
 --
Brass, electroless nickel pl. SP-006-1-NP010-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(M), Self-sealing Coupling

Partial Part Number: SP-006-0-NP013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-NP013-11-1
 SP-006-0-NP013-11-2
 SP-006-0-NP013-11-4
 SP-006-0-NP013-11
Brass, passivated SP-006-0-NP013-21-1
 SP-006-0-NP013-21-2
 SP-006-0-NP013-21-4
 SP-006-0-NP013-21
Brass, chrome plated SP-006-0-NP013-22-1
 SP-006-0-NP013-22-2
 SP-006-0-NP013-22-4
 SP-006-0-NP013-22
Steel, 316 stainless SP-006-0-NP013-01-1
 SP-006-0-NP013-01-2
 SP-006-0-NP013-01-4
 --
Aluminum, anodized SP-006-0-NP013-32-1
 SP-006-0-NP013-32-2
 SP-006-0-NP013-32-4
 --
Steel, electroless nickel pl. SP-006-0-NP013-13-1
 SP-006-0-NP013-13-2
 SP-006-0-NP013-13-4
 --
Brass, electroless nickel pl. SP-006-0-NP013-24-1
 SP-006-0-NP013-24-2
 SP-006-0-NP013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(M), Self-sealing Nipple

Partial Part Number: SP-006-2-NP013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-NP013-11-1
 SP-006-2-NP013-11-2
 SP-006-2-NP013-11-4
 SP-006-2-NP013-11
Brass, passivated SP-006-2-NP013-21-1
 SP-006-2-NP013-21-2
 SP-006-2-NP013-21-4
 SP-006-2-NP013-21
Brass, chrome plated SP-006-2-NP013-22-1
 SP-006-2-NP013-22-2
 SP-006-2-NP013-22-4
 SP-006-2-NP013-22
Steel, 316 stainless SP-006-2-NP013-01-1
 SP-006-2-NP013-01-2
 SP-006-2-NP013-01-4
 --
Aluminum, anodized SP-006-2-NP013-32-1
 SP-006-2-NP013-32-2
 SP-006-2-NP013-32-4
 --
Steel, electroless nickel pl. SP-006-2-NP013-13-1
 SP-006-2-NP013-13-2
 SP-006-2-NP013-13-4
 --
Brass, electroless nickel pl. SP-006-2-NP013-24-1
 SP-006-2-NP013-24-2
 SP-006-2-NP013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(M), Thru type Nipple

Partial Part Number: SP-006-1-NP013-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-NP013-11
 --
Brass, passivated SP-006-1-NP013-21
 --
Brass, chrome plated SP-006-1-NP013-22
 --
Steel, 316 stainless SP-006-1-NP013-01
 --
Aluminum, anodized SP-006-1-NP013-32
 --
Steel, electroless nickel pl. SP-006-1-NP013-13
 --
Brass, electroless nickel pl. SP-006-1-NP013-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(M), Self-sealing Coupling

Partial Part Number: SP-006-0-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-NP017-11-1
 SP-006-0-NP017-11-2
 SP-006-0-NP017-11-4
 SP-006-0-NP017-11
Brass, passivated SP-006-0-NP017-21-1
 SP-006-0-NP017-21-2
 SP-006-0-NP017-21-4
 SP-006-0-NP017-21
Brass, chrome plated SP-006-0-NP017-22-1
 SP-006-0-NP017-22-2
 SP-006-0-NP017-22-4
 SP-006-0-NP017-22
Steel, 316 stainless SP-006-0-NP017-01-1
 SP-006-0-NP017-01-2
 SP-006-0-NP017-01-4
 --
Aluminum, anodized SP-006-0-NP017-32-1
 SP-006-0-NP017-32-2
 SP-006-0-NP017-32-4
 --
Steel, electroless nickel pl. SP-006-0-NP017-13-1
 SP-006-0-NP017-13-2
 SP-006-0-NP017-13-4
 --
Brass, electroless nickel pl. SP-006-0-NP017-24-1
 SP-006-0-NP017-24-2
 SP-006-0-NP017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(M), Self-sealing Nipple

Partial Part Number: SP-006-2-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-NP017-11-1
 SP-006-2-NP017-11-2
 SP-006-2-NP017-11-4
 SP-006-2-NP017-11
Brass, passivated SP-006-2-NP017-21-1
 SP-006-2-NP017-21-2
 SP-006-2-NP017-21-4
 SP-006-2-NP017-21
Brass, chrome plated SP-006-2-NP017-22-1
 SP-006-2-NP017-22-2
 SP-006-2-NP017-22-4
 SP-006-2-NP017-22
Steel, 316 stainless SP-006-2-NP017-01-1
 SP-006-2-NP017-01-2
 SP-006-2-NP017-01-4
 --
Aluminum, anodized SP-006-2-NP017-32-1
 SP-006-2-NP017-32-2
 SP-006-2-NP017-32-4
 --
Steel, electroless nickel pl. SP-006-2-NP017-13-1
 SP-006-2-NP017-13-2
 SP-006-2-NP017-13-4
 --
Brass, electroless nickel pl. SP-006-2-NP017-24-1
 SP-006-2-NP017-24-2
 SP-006-2-NP017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(M), Thru type Nipple

Partial Part Number: SP-006-1-NP017-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-NP017-11
 --
Brass, passivated SP-006-1-NP017-21
 --
Brass, chrome plated SP-006-1-NP017-22
 --
Steel, 316 stainless SP-006-1-NP017-01
 --
Aluminum, anodized SP-006-1-NP017-32
 --
Steel, electroless nickel pl. SP-006-1-NP017-13
 --
Brass, electroless nickel pl. SP-006-1-NP017-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/2" NPT(M), Self-sealing Coupling

Partial Part Number: SP-006-0-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-NP021-11-1
 SP-006-0-NP021-11-2
 SP-006-0-NP021-11-4
 SP-006-0-NP021-11
Brass, passivated SP-006-0-NP021-21-1
 SP-006-0-NP021-21-2
 SP-006-0-NP021-21-4
 --
Brass, chrome plated SP-006-0-NP021-22-1
 SP-006-0-NP021-22-2
 SP-006-0-NP021-22-4
 --
Steel, 316 stainless SP-006-0-NP021-01-1
 SP-006-0-NP021-01-2
 SP-006-0-NP021-01-4
 --
Aluminum, anodized SP-006-0-NP021-32-1
 SP-006-0-NP021-32-2
 SP-006-0-NP021-32-4
 --
Steel, electroless nickel pl. SP-006-0-NP021-13-1
 SP-006-0-NP021-13-2
 SP-006-0-NP021-13-4
 --
Brass, electroless nickel pl. SP-006-0-NP021-24-1
 SP-006-0-NP021-24-2
 SP-006-0-NP021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/2" NPT(M), Self-sealing Nipple

Partial Part Number: SP-006-2-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-NP021-11-1
 SP-006-2-NP021-11-2
 SP-006-2-NP021-11-4
 SP-006-2-NP021-11
Brass, passivated SP-006-2-NP021-21-1
 SP-006-2-NP021-21-2
 SP-006-2-NP021-21-4
 --
Brass, chrome plated SP-006-2-NP021-22-1
 SP-006-2-NP021-22-2
 SP-006-2-NP021-22-4
 --
Steel, 316 stainless SP-006-2-NP021-01-1
 SP-006-2-NP021-01-2
 SP-006-2-NP021-01-4
 --
Aluminum, anodized SP-006-2-NP021-32-1
 SP-006-2-NP021-32-2
 SP-006-2-NP021-32-4
 --
Steel, electroless nickel pl. SP-006-2-NP021-13-1
 SP-006-2-NP021-13-2
 SP-006-2-NP021-13-4
 --
Brass, electroless nickel pl. SP-006-2-NP021-24-1
 SP-006-2-NP021-24-2
 SP-006-2-NP021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(F), Self-sealing Coupling

Partial Part Number: SP-006-0-NP513-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-NP513-11-1
 SP-006-0-NP513-11-2
 SP-006-0-NP513-11-4
 SP-006-0-NP513-11
Brass, passivated SP-006-0-NP513-21-1
 SP-006-0-NP513-21-2
 SP-006-0-NP513-21-4
 SP-006-0-NP513-21
Brass, chrome plated SP-006-0-NP513-22-1
 SP-006-0-NP513-22-2
 SP-006-0-NP513-22-4
 SP-006-0-NP513-22
Steel, 316 stainless SP-006-0-NP513-01-1
 SP-006-0-NP513-01-2
 SP-006-0-NP513-01-4
 --
Aluminum, anodized SP-006-0-NP513-32-1
 SP-006-0-NP513-32-2
 SP-006-0-NP513-32-4
 --
Steel, electroless nickel pl. SP-006-0-NP513-13-1
 SP-006-0-NP513-13-2
 SP-006-0-NP513-13-4
 --
Brass, electroless nickel pl. SP-006-0-NP513-24-1
 SP-006-0-NP513-24-2
 SP-006-0-NP513-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(F), Self-sealing Nipple

Partial Part Number: SP-006-2-NP513-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-NP513-11-1
 SP-006-2-NP513-11-2
 SP-006-2-NP513-11-4
 SP-006-2-NP513-11
Brass, passivated SP-006-2-NP513-21-1
 SP-006-2-NP513-21-2
 SP-006-2-NP513-21-4
 SP-006-2-NP513-21
Brass, chrome plated SP-006-2-NP513-22-1
 SP-006-2-NP513-22-2
 SP-006-2-NP513-22-4
 SP-006-2-NP513-22
Steel, 316 stainless SP-006-2-NP513-01-1
 SP-006-2-NP513-01-2
 SP-006-2-NP513-01-4
 --
Aluminum, anodized SP-006-2-NP513-32-1
 SP-006-2-NP513-32-2
 SP-006-2-NP513-32-4
 --
Steel, electroless nickel pl. SP-006-2-NP513-13-1
 SP-006-2-NP513-13-2
 SP-006-2-NP513-13-4
 --
Brass, electroless nickel pl. SP-006-2-NP513-24-1
 SP-006-2-NP513-24-2
 SP-006-2-NP513-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" NPT(F), Thru type Nipple

Partial Part Number: SP-006-1-NP513-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-NP513-11
 --
Brass, passivated SP-006-1-NP513-21
 --
Brass, chrome plated SP-006-1-NP513-22
 --
Steel, 316 stainless SP-006-1-NP513-01
 --
Aluminum, anodized SP-006-1-NP513-32
 --
Steel, electroless nickel pl. SP-006-1-NP513-13
 --
Brass, electroless nickel pl. SP-006-1-NP513-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(F), Self-sealing Coupling

Partial Part Number: SP-006-0-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-NP517-11-1
 SP-006-0-NP517-11-2
 SP-006-0-NP517-11-4
 SP-006-0-NP517-11
Brass, passivated SP-006-0-NP517-21-1
 SP-006-0-NP517-21-2
 SP-006-0-NP517-21-4
 SP-006-0-NP517-21
Brass, chrome plated SP-006-0-NP517-22-1
 SP-006-0-NP517-22-2
 SP-006-0-NP517-22-4
 --
Steel, 316 stainless SP-006-0-NP517-01-1
 SP-006-0-NP517-01-2
 SP-006-0-NP517-01-4
 --
Aluminum, anodized SP-006-0-NP517-32-1
 SP-006-0-NP517-32-2
 SP-006-0-NP517-32-4
 --
Steel, electroless nickel pl. SP-006-0-NP517-13-1
 SP-006-0-NP517-13-2
 SP-006-0-NP517-13-4
 --
Brass, electroless nickel pl. SP-006-0-NP517-24-1
 SP-006-0-NP517-24-2
 SP-006-0-NP517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(F), Self-sealing Nipple

Partial Part Number: SP-006-2-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-NP517-11-1
 SP-006-2-NP517-11-2
 SP-006-2-NP517-11-4
 SP-006-2-NP517-11
Brass, passivated SP-006-2-NP517-21-1
 SP-006-2-NP517-21-2
 SP-006-2-NP517-21-4
 SP-006-2-NP517-21
Brass, chrome plated SP-006-2-NP517-22-1
 SP-006-2-NP517-22-2
 SP-006-2-NP517-22-4
 --
Steel, 316 stainless SP-006-2-NP517-01-1
 SP-006-2-NP517-01-2
 SP-006-2-NP517-01-4
 --
Aluminum, anodized SP-006-2-NP517-32-1
 SP-006-2-NP517-32-2
 SP-006-2-NP517-32-4
 --
Steel, electroless nickel pl. SP-006-2-NP517-13-1
 SP-006-2-NP517-13-2
 SP-006-2-NP517-13-4
 --
Brass, electroless nickel pl. SP-006-2-NP517-24-1
 SP-006-2-NP517-24-2
 SP-006-2-NP517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" NPT(F), Thru type Nipple

Partial Part Number: SP-006-1-NP517-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-NP517-11
 --
Brass, passivated SP-006-1-NP517-21
 --
Brass, chrome plated SP-006-1-NP517-22
 --
Steel, 316 stainless SP-006-1-NP517-01
 --
Aluminum, anodized SP-006-1-NP517-32
 --
Steel, electroless nickel pl. SP-006-1-NP517-13
 --
Brass, electroless nickel pl. SP-006-1-NP517-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: SP-006-0-VR013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-VR013-11-1
 SP-006-0-VR013-11-2
 SP-006-0-VR013-11-4
 SP-006-0-VR013-11
Steel, 316 stainless SP-006-0-VR013-01-1
 SP-006-0-VR013-01-2
 SP-006-0-VR013-01-4
 --
Steel, electroless nickel pl. SP-006-0-VR013-13-1
 SP-006-0-VR013-13-2
 SP-006-0-VR013-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: SP-006-2-VR013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-VR013-11-1
 SP-006-2-VR013-11-2
 SP-006-2-VR013-11-4
 SP-006-2-VR013-11
Steel, 316 stainless SP-006-2-VR013-01-1
 SP-006-2-VR013-01-2
 SP-006-2-VR013-01-4
 --
Steel, electroless nickel pl. SP-006-2-VR013-13-1
 SP-006-2-VR013-13-2
 SP-006-2-VR013-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: SP-006-0-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-VR017-11-1
 SP-006-0-VR017-11-2
 SP-006-0-VR017-11-4
 SP-006-0-VR017-11
Steel, 316 stainless SP-006-0-VR017-01-1
 SP-006-0-VR017-01-2
 SP-006-0-VR017-01-4
 --
Steel, electroless nickel pl. SP-006-0-VR017-13-1
 SP-006-0-VR017-13-2
 SP-006-0-VR017-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: SP-006-2-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-VR017-11-1
 SP-006-2-VR017-11-2
 SP-006-2-VR017-11-4
 SP-006-2-VR017-11
Steel, 316 stainless SP-006-2-VR017-01-1
 SP-006-2-VR017-01-2
 SP-006-2-VR017-01-4
 --
Steel, electroless nickel pl. SP-006-2-VR017-13-1
 SP-006-2-VR017-13-2
 SP-006-2-VR017-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5, Self-sealing Coupling

Partial Part Number: SP-006-0-D0614-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-D0614-11-1
 SP-006-0-D0614-11-2
 SP-006-0-D0614-11-4
 SP-006-0-D0614-11
Steel, 316 stainless SP-006-0-D0614-01-1
 SP-006-0-D0614-01-2
 SP-006-0-D0614-01-4
 --
Steel, electroless nickel pl. SP-006-0-D0614-13-1
 SP-006-0-D0614-13-2
 SP-006-0-D0614-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5, Self-sealing Nipple

Partial Part Number: SP-006-2-D0614-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-D0614-11-1
 SP-006-2-D0614-11-2
 SP-006-2-D0614-11-4
 SP-006-2-D0614-11
Steel, 316 stainless SP-006-2-D0614-01-1
 SP-006-2-D0614-01-2
 SP-006-2-D0614-01-4
 --
Steel, electroless nickel pl. SP-006-2-D0614-13-1
 SP-006-2-D0614-13-2
 SP-006-2-D0614-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Coupling

Partial Part Number: SP-006-0-DV008-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-DV008-11-1
 SP-006-0-DV008-11-2
 SP-006-0-DV008-11-4
 --
Steel, 316 stainless SP-006-0-DV008-01-1
 SP-006-0-DV008-01-2
 SP-006-0-DV008-01-4
 --
Steel, electroless nickel pl. SP-006-0-DV008-13-1
 SP-006-0-DV008-13-2
 SP-006-0-DV008-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

Partial Part Number: SP-006-2-DV008-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-DV008-11-1
 SP-006-2-DV008-11-2
 SP-006-2-DV008-11-4
 --
Steel, 316 stainless SP-006-2-DV008-01-1
 SP-006-2-DV008-01-2
 SP-006-2-DV008-01-4
 --
Steel, electroless nickel pl. SP-006-2-DV008-13-1
 SP-006-2-DV008-13-2
 SP-006-2-DV008-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M12 x 1.5 6mm tube OD (Light), Self-sealing Coupling

Partial Part Number: SP-006-0-L0612-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-L0612-11-1
 SP-006-0-L0612-11-2
 SP-006-0-L0612-11-4
 SP-006-0-L0612-11
Steel, 316 stainless SP-006-0-L0612-01-1
 SP-006-0-L0612-01-2
 SP-006-0-L0612-01-4
 --
Steel, electroless nickel pl. SP-006-0-L0612-13-1
 SP-006-0-L0612-13-2
 SP-006-0-L0612-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M12 x 1.5 6mm tube OD (Light), Self-sealing Nipple

Partial Part Number: SP-006-2-L0612-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-L0612-11-1
 SP-006-2-L0612-11-2
 SP-006-2-L0612-11-4
 SP-006-2-L0612-11
Steel, 316 stainless SP-006-2-L0612-01-1
 SP-006-2-L0612-01-2
 SP-006-2-L0612-01-4
 --
Steel, electroless nickel pl. SP-006-2-L0612-13-1
 SP-006-2-L0612-13-2
 SP-006-2-L0612-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 8mm tube OD (Light), Self-sealing Coupling

Partial Part Number: SP-006-0-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-L0814-11-1
 SP-006-0-L0814-11-2
 SP-006-0-L0814-11-4
 SP-006-0-L0814-11
Steel, 316 stainless SP-006-0-L0814-01-1
 SP-006-0-L0814-01-2
 SP-006-0-L0814-01-4
 --
Steel, electroless nickel pl. SP-006-0-L0814-13-1
 SP-006-0-L0814-13-2
 SP-006-0-L0814-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 8mm tube OD (Light), Self-sealing Nipple

Partial Part Number: SP-006-2-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-L0814-11-1
 SP-006-2-L0814-11-2
 SP-006-2-L0814-11-4
 SP-006-2-L0814-11
Steel, 316 stainless SP-006-2-L0814-01-1
 SP-006-2-L0814-01-2
 SP-006-2-L0814-01-4
 --
Steel, electroless nickel pl. SP-006-2-L0814-13-1
 SP-006-2-L0814-13-2
 SP-006-2-L0814-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 8mm tube OD (Light), bulkhead mount, Self-sealing Coupling

Partial Part Number: SP-006-0-LV008-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-LV008-11-1
 SP-006-0-LV008-11-2
 SP-006-0-LV008-11-4
 SP-006-0-LV008-11
Steel, 316 stainless SP-006-0-LV008-01-1
 SP-006-0-LV008-01-2
 SP-006-0-LV008-01-4
 --
Steel, electroless nickel pl. SP-006-0-LV008-13-1
 SP-006-0-LV008-13-2
 SP-006-0-LV008-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M14 x 1.5 8mm tube OD (Light), bulkhead mount, Self-sealing Nipple

Partial Part Number: SP-006-2-LV008-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-LV008-11-1
 SP-006-2-LV008-11-2
 SP-006-2-LV008-11-4
 SP-006-2-LV008-11
Steel, 316 stainless SP-006-2-LV008-01-1
 SP-006-2-LV008-01-2
 SP-006-2-LV008-01-4
 --
Steel, electroless nickel pl. SP-006-2-LV008-13-1
 SP-006-2-LV008-13-2
 SP-006-2-LV008-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Coupling

Partial Part Number: SP-006-0-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-L1016-11-1
 SP-006-0-L1016-11-2
 SP-006-0-L1016-11-4
 SP-006-0-L1016-11
Steel, 316 stainless SP-006-0-L1016-01-1
 SP-006-0-L1016-01-2
 SP-006-0-L1016-01-4
 --
Steel, electroless nickel pl. SP-006-0-L1016-13-1
 SP-006-0-L1016-13-2
 SP-006-0-L1016-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Nipple

Partial Part Number: SP-006-2-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-L1016-11-1
 SP-006-2-L1016-11-2
 SP-006-2-L1016-11-4
 SP-006-2-L1016-11
Steel, 316 stainless SP-006-2-L1016-01-1
 SP-006-2-L1016-01-2
 SP-006-2-L1016-01-4
 --
Steel, electroless nickel pl. SP-006-2-L1016-13-1
 SP-006-2-L1016-13-2
 SP-006-2-L1016-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 10mm tube OD (Light), bulkhead mount, Self-sealing Coupling

Partial Part Number: SP-006-0-XX211-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-XX211-11-1
 SP-006-0-XX211-11-2
 SP-006-0-XX211-11-4
 --
Steel, 316 stainless SP-006-0-XX211-01-1
 SP-006-0-XX211-01-2
 SP-006-0-XX211-01-4
 --
Steel, electroless nickel pl. SP-006-0-XX211-13-1
 SP-006-0-XX211-13-2
 SP-006-0-XX211-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 10mm tube OD (Light), bulkhead mount, Self-sealing Nipple

Partial Part Number: SP-006-2-XX211-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-XX211-11-1
 SP-006-2-XX211-11-2
 SP-006-2-XX211-11-4
 --
Steel, 316 stainless SP-006-2-XX211-01-1
 SP-006-2-XX211-01-2
 SP-006-2-XX211-01-4
 --
Steel, electroless nickel pl. SP-006-2-XX211-13-1
 SP-006-2-XX211-13-2
 SP-006-2-XX211-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M18 x 1.5 12mm tube OD (Light), Self-sealing Coupling

Partial Part Number: SP-006-0-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-L1218-11-1
 SP-006-0-L1218-11-2
 SP-006-0-L1218-11-4
 SP-006-0-L1218-11
Steel, 316 stainless SP-006-0-L1218-01-1
 SP-006-0-L1218-01-2
 SP-006-0-L1218-01-4
 --
Steel, electroless nickel pl. SP-006-0-L1218-13-1
 SP-006-0-L1218-13-2
 SP-006-0-L1218-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M18 x 1.5 12mm tube OD (Light), Self-sealing Nipple

Partial Part Number: SP-006-2-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-L1218-11-1
 SP-006-2-L1218-11-2
 SP-006-2-L1218-11-4
 SP-006-2-L1218-11
Steel, 316 stainless SP-006-2-L1218-01-1
 SP-006-2-L1218-01-2
 SP-006-2-L1218-01-4
 --
Steel, electroless nickel pl. SP-006-2-L1218-13-1
 SP-006-2-L1218-13-2
 SP-006-2-L1218-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 8mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: SP-006-0-S0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-S0816-11-1
 SP-006-0-S0816-11-2
 SP-006-0-S0816-11-4
 --
Steel, 316 stainless SP-006-0-S0816-01-1
 SP-006-0-S0816-01-2
 SP-006-0-S0816-01-4
 --
Steel, electroless nickel pl. SP-006-0-S0816-13-1
 SP-006-0-S0816-13-2
 SP-006-0-S0816-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M16 x 1.5 8mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: SP-006-2-S0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-S0816-11-1
 SP-006-2-S0816-11-2
 SP-006-2-S0816-11-4
 --
Steel, 316 stainless SP-006-2-S0816-01-1
 SP-006-2-S0816-01-2
 SP-006-2-S0816-01-4
 --
Steel, electroless nickel pl. SP-006-2-S0816-13-1
 SP-006-2-S0816-13-2
 SP-006-2-S0816-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: SP-006-0-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-S1018-11-1
 SP-006-0-S1018-11-2
 SP-006-0-S1018-11-4
 SP-006-0-S1018-11
Steel, 316 stainless SP-006-0-S1018-01-1
 SP-006-0-S1018-01-2
 SP-006-0-S1018-01-4
 --
Steel, electroless nickel pl. SP-006-0-S1018-13-1
 SP-006-0-S1018-13-2
 SP-006-0-S1018-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: SP-006-2-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-S1018-11-1
 SP-006-2-S1018-11-2
 SP-006-2-S1018-11-4
 SP-006-2-S1018-11
Steel, 316 stainless SP-006-2-S1018-01-1
 SP-006-2-S1018-01-2
 SP-006-2-S1018-01-4
 --
Steel, electroless nickel pl. SP-006-2-S1018-13-1
 SP-006-2-S1018-13-2
 SP-006-2-S1018-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M20 x 1.5 12mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: SP-006-0-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-S1220-11-1
 SP-006-0-S1220-11-2
 SP-006-0-S1220-11-4
 --
Steel, 316 stainless SP-006-0-S1220-01-1
 SP-006-0-S1220-01-2
 SP-006-0-S1220-01-4
 --
Steel, electroless nickel pl. SP-006-0-S1220-13-1
 SP-006-0-S1220-13-2
 SP-006-0-S1220-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M20 x 1.5 12mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: SP-006-2-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-S1220-11-1
 SP-006-2-S1220-11-2
 SP-006-2-S1220-11-4
 --
Steel, 316 stainless SP-006-2-S1220-01-1
 SP-006-2-S1220-01-2
 SP-006-2-S1220-01-4
 --
Steel, electroless nickel pl. SP-006-2-S1220-13-1
 SP-006-2-S1220-13-2
 SP-006-2-S1220-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" Hose Barb (6mm), Self-sealing Coupling

Partial Part Number: SP-006-0-SL006-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-SL006-11-1
 SP-006-0-SL006-11-2
 SP-006-0-SL006-11-4
 --
Brass, passivated SP-006-0-SL006-21-1
 SP-006-0-SL006-21-2
 SP-006-0-SL006-21-4
 --
Brass, chrome plated SP-006-0-SL006-22-1
 SP-006-0-SL006-22-2
 SP-006-0-SL006-22-4
 SP-006-0-SL006-22
Steel, 316 stainless SP-006-0-SL006-01-1
 SP-006-0-SL006-01-2
 SP-006-0-SL006-01-4
 --
Aluminum, anodized SP-006-0-SL006-32-1
 SP-006-0-SL006-32-2
 SP-006-0-SL006-32-4
 --
Steel, electroless nickel pl. SP-006-0-SL006-13-1
 SP-006-0-SL006-13-2
 SP-006-0-SL006-13-4
 --
Brass, electroless nickel pl. SP-006-0-SL006-24-1
 SP-006-0-SL006-24-2
 SP-006-0-SL006-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" Hose Barb (6mm), Self-sealing Nipple

Partial Part Number: SP-006-2-SL006-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-SL006-11-1
 SP-006-2-SL006-11-2
 SP-006-2-SL006-11-4
 --
Brass, passivated SP-006-2-SL006-21-1
 SP-006-2-SL006-21-2
 SP-006-2-SL006-21-4
 --
Brass, chrome plated SP-006-2-SL006-22-1
 SP-006-2-SL006-22-2
 SP-006-2-SL006-22-4
 SP-006-2-SL006-22
Steel, 316 stainless SP-006-2-SL006-01-1
 SP-006-2-SL006-01-2
 SP-006-2-SL006-01-4
 --
Aluminum, anodized SP-006-2-SL006-32-1
 SP-006-2-SL006-32-2
 SP-006-2-SL006-32-4
 --
Steel, electroless nickel pl. SP-006-2-SL006-13-1
 SP-006-2-SL006-13-2
 SP-006-2-SL006-13-4
 --
Brass, electroless nickel pl. SP-006-2-SL006-24-1
 SP-006-2-SL006-24-2
 SP-006-2-SL006-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" Hose Barb (6mm), Thru type Nipple

Partial Part Number: SP-006-1-SL006-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-SL006-11
 SP-006-1-SL006-11
Brass, passivated SP-006-1-SL006-21
 --
Brass, chrome plated SP-006-1-SL006-22
 --
Steel, 316 stainless SP-006-1-SL006-01
 --
Aluminum, anodized SP-006-1-SL006-32
 --
Steel, electroless nickel pl. SP-006-1-SL006-13
 --
Brass, electroless nickel pl. SP-006-1-SL006-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

11/32" Hose Barb (9mm), Self-sealing Coupling

Partial Part Number: SP-006-0-SL009-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-SL009-11-1
 SP-006-0-SL009-11-2
 SP-006-0-SL009-11-4
 SP-006-0-SL009-11
Brass, passivated SP-006-0-SL009-21-1
 SP-006-0-SL009-21-2
 SP-006-0-SL009-21-4
 SP-006-0-SL009-21
Brass, chrome plated SP-006-0-SL009-22-1
 SP-006-0-SL009-22-2
 SP-006-0-SL009-22-4
 SP-006-0-SL009-22
Steel, 316 stainless SP-006-0-SL009-01-1
 SP-006-0-SL009-01-2
 SP-006-0-SL009-01-4
 --
Aluminum, anodized SP-006-0-SL009-32-1
 SP-006-0-SL009-32-2
 SP-006-0-SL009-32-4
 --
Steel, electroless nickel pl. SP-006-0-SL009-13-1
 SP-006-0-SL009-13-2
 SP-006-0-SL009-13-4
 --
Brass, electroless nickel pl. SP-006-0-SL009-24-1
 SP-006-0-SL009-24-2
 SP-006-0-SL009-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

11/32" Hose Barb (9mm), Self-sealing Nipple

Partial Part Number: SP-006-2-SL009-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-SL009-11-1
 SP-006-2-SL009-11-2
 SP-006-2-SL009-11-4
 SP-006-2-SL009-11
Brass, passivated SP-006-2-SL009-21-1
 SP-006-2-SL009-21-2
 SP-006-2-SL009-21-4
 SP-006-2-SL009-21
Brass, chrome plated SP-006-2-SL009-22-1
 SP-006-2-SL009-22-2
 SP-006-2-SL009-22-4
 SP-006-2-SL009-22
Steel, 316 stainless SP-006-2-SL009-01-1
 SP-006-2-SL009-01-2
 SP-006-2-SL009-01-4
 --
Aluminum, anodized SP-006-2-SL009-32-1
 SP-006-2-SL009-32-2
 SP-006-2-SL009-32-4
 --
Steel, electroless nickel pl. SP-006-2-SL009-13-1
 SP-006-2-SL009-13-2
 SP-006-2-SL009-13-4
 --
Brass, electroless nickel pl. SP-006-2-SL009-24-1
 SP-006-2-SL009-24-2
 SP-006-2-SL009-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

11/32" Hose Barb (9mm), Thru type Nipple

Partial Part Number: SP-006-1-SL009-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated SP-006-1-SL009-11
 SP-006-1-SL009-11
Brass, passivated SP-006-1-SL009-21
 --
Brass, chrome plated SP-006-1-SL009-22
 --
Steel, 316 stainless SP-006-1-SL009-01
 --
Aluminum, anodized SP-006-1-SL009-32
 --
Steel, electroless nickel pl. SP-006-1-SL009-13
 --
Brass, electroless nickel pl. SP-006-1-SL009-24
 --
Standard materials in bold. Other materials available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

7/16" Hose Barb (11mm), Self-sealing Coupling

Partial Part Number: SP-006-0-SL011-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-SL011-11-1
 SP-006-0-SL011-11-2
 SP-006-0-SL011-11-4
 --
Brass, passivated SP-006-0-SL011-21-1
 SP-006-0-SL011-21-2
 SP-006-0-SL011-21-4
 --
Brass, chrome plated SP-006-0-SL011-22-1
 SP-006-0-SL011-22-2
 SP-006-0-SL011-22-4
 SP-006-0-SL011-22
Steel, 316 stainless SP-006-0-SL011-01-1
 SP-006-0-SL011-01-2
 SP-006-0-SL011-01-4
 --
Aluminum, anodized SP-006-0-SL011-32-1
 SP-006-0-SL011-32-2
 SP-006-0-SL011-32-4
 --
Steel, electroless nickel pl. SP-006-0-SL011-13-1
 SP-006-0-SL011-13-2
 SP-006-0-SL011-13-4
 --
Brass, electroless nickel pl. SP-006-0-SL011-24-1
 SP-006-0-SL011-24-2
 SP-006-0-SL011-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

7/16" Hose Barb (11mm), Self-sealing Nipple

Partial Part Number: SP-006-2-SL011-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-SL011-11-1
 SP-006-2-SL011-11-2
 SP-006-2-SL011-11-4
 --
Brass, passivated SP-006-2-SL011-21-1
 SP-006-2-SL011-21-2
 SP-006-2-SL011-21-4
 --
Brass, chrome plated SP-006-2-SL011-22-1
 SP-006-2-SL011-22-2
 SP-006-2-SL011-22-4
 SP-006-2-SL011-22
Steel, 316 stainless SP-006-2-SL011-01-1
 SP-006-2-SL011-01-2
 SP-006-2-SL011-01-4
 --
Aluminum, anodized SP-006-2-SL011-32-1
 SP-006-2-SL011-32-2
 SP-006-2-SL011-32-4
 --
Steel, electroless nickel pl. SP-006-2-SL011-13-1
 SP-006-2-SL011-13-2
 SP-006-2-SL011-13-4
 --
Brass, electroless nickel pl. SP-006-2-SL011-24-1
 SP-006-2-SL011-24-2
 SP-006-2-SL011-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/2" Hose Barb (13mm), Self-sealing Coupling

Partial Part Number: SP-006-0-SL013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-0-SL013-11-1
 SP-006-0-SL013-11-2
 SP-006-0-SL013-11-4
 --
Brass, passivated SP-006-0-SL013-21-1
 SP-006-0-SL013-21-2
 SP-006-0-SL013-21-4
 SP-006-0-SL013-21
Brass, chrome plated SP-006-0-SL013-22-1
 SP-006-0-SL013-22-2
 SP-006-0-SL013-22-4
 --
Steel, 316 stainless SP-006-0-SL013-01-1
 SP-006-0-SL013-01-2
 SP-006-0-SL013-01-4
 --
Aluminum, anodized SP-006-0-SL013-32-1
 SP-006-0-SL013-32-2
 SP-006-0-SL013-32-4
 --
Steel, electroless nickel pl. SP-006-0-SL013-13-1
 SP-006-0-SL013-13-2
 SP-006-0-SL013-13-4
 --
Brass, electroless nickel pl. SP-006-0-SL013-24-1
 SP-006-0-SL013-24-2
 SP-006-0-SL013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/2" Hose Barb (13mm), Self-sealing Nipple

Partial Part Number: SP-006-2-SL013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated SP-006-2-SL013-11-1
 SP-006-2-SL013-11-2
 SP-006-2-SL013-11-4
 --
Brass, passivated SP-006-2-SL013-21-1
 SP-006-2-SL013-21-2
 SP-006-2-SL013-21-4
 SP-006-2-SL013-21
Brass, chrome plated SP-006-2-SL013-22-1
 SP-006-2-SL013-22-2
 SP-006-2-SL013-22-4
 --
Steel, 316 stainless SP-006-2-SL013-01-1
 SP-006-2-SL013-01-2
 SP-006-2-SL013-01-4
 --
Aluminum, anodized SP-006-2-SL013-32-1
 SP-006-2-SL013-32-2
 SP-006-2-SL013-32-4
 --
Steel, electroless nickel pl. SP-006-2-SL013-13-1
 SP-006-2-SL013-13-2
 SP-006-2-SL013-13-4
 --
Brass, electroless nickel pl. SP-006-2-SL013-24-1
 SP-006-2-SL013-24-2
 SP-006-2-SL013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Contact one of our sales representatives today
to inquire about a quote from Maxbar - Walther Precision USA
or call us today at 513.527.4100


Maxbar ISO CertificationsMaxbar OSHA
