Coupling Information

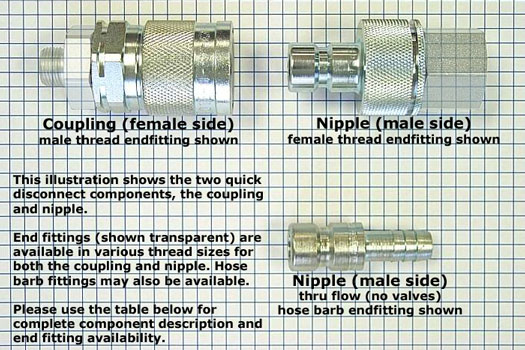

There are three basic types of LP-007 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) LP-007-0-... LP-007-2-...
No valves (thru type) Use LP-007-0-... with -OV option LP-007-1-...
LP-007 Couplings

End Fittings

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple
BSPP(M) 1/4" -- -- LP-007-1-WR013-..
BSPP(M) 3/8" LP-007-0-WR017-.. LP-007-2-WR017-.. LP-007-1-WR017-..
BSPP(M) 1/2" LP-007-0-WR021-.. LP-007-2-WR021-.. LP-007-1-WR021-..
BSPP(F) 1/4" -- -- LP-007-1-WR513-..
BSPP(F) 3/8" LP-007-0-WR517-.. LP-007-2-WR517-.. LP-007-1-WR517-..

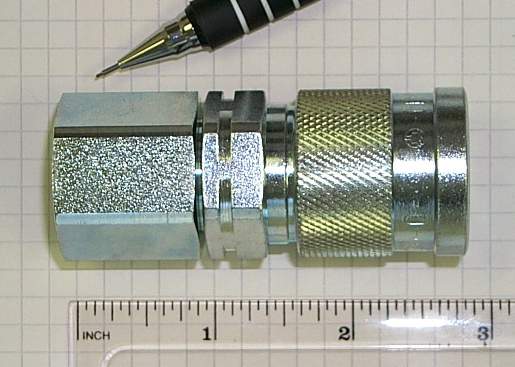

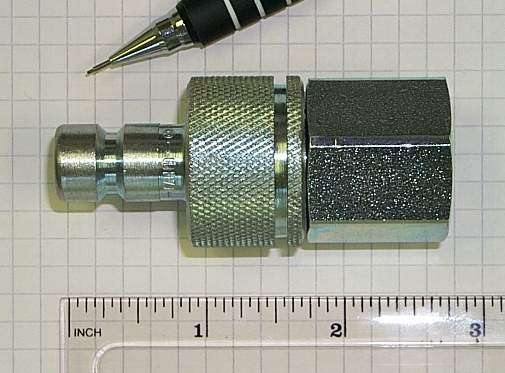

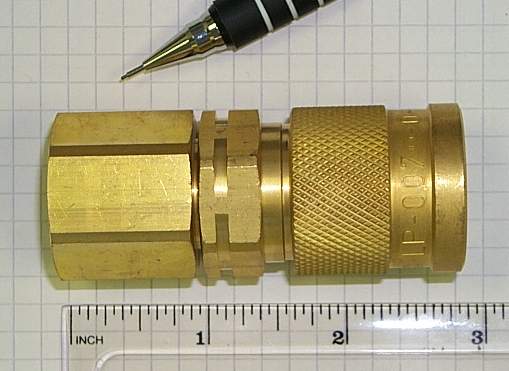

BSPP(F) 1/2" LP-007-0-WR521-.. LP-007-2-WR521-.. LP-007-1-WR521-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple
NPT(M) 1/4" -- -- LP-007-1-NP013-..

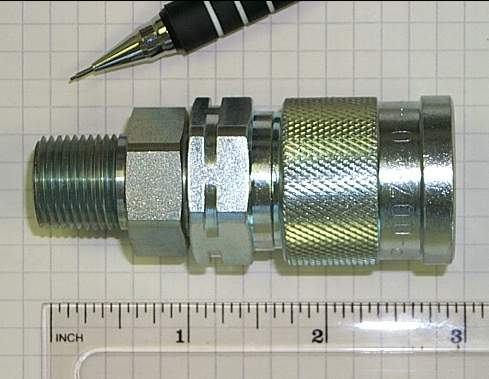

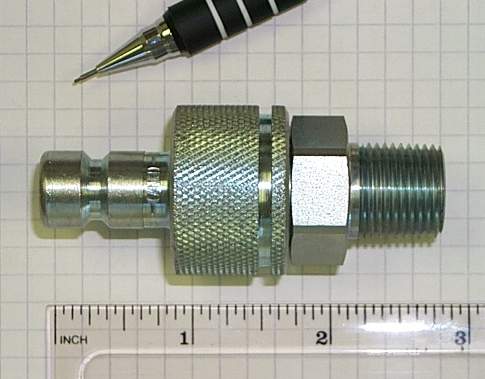

NPT(M) 3/8" LP-007-0-NP017-.. LP-007-2-NP017-.. LP-007-1-NP017-..

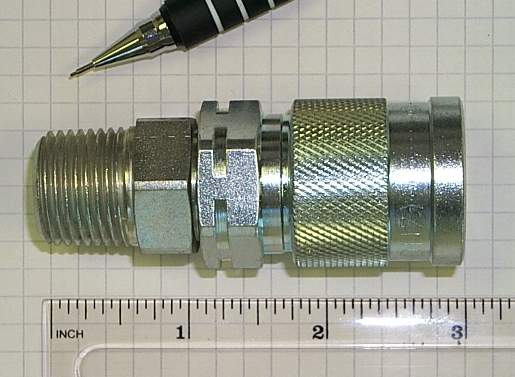

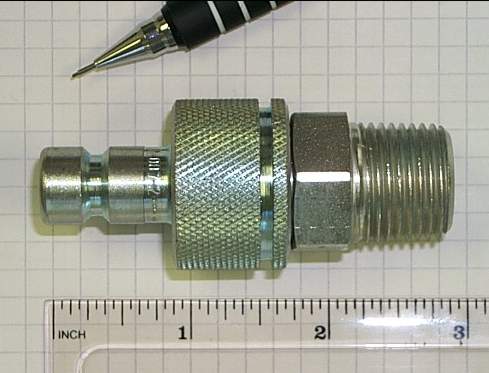

NPT(M) 1/2" LP-007-0-NP021-.. LP-007-2-NP021-.. LP-007-1-NP021-..
NPT(F) 1/4" -- -- LP-007-1-NP513-..

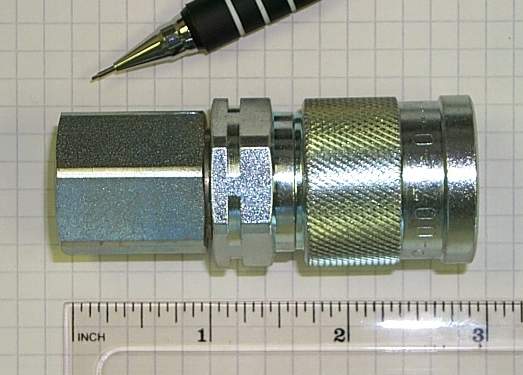

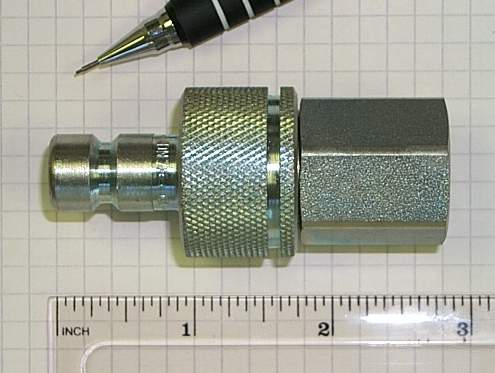

NPT(F) 3/8" LP-007-0-NP517-.. LP-007-2-NP517-.. LP-007-1-NP517-..

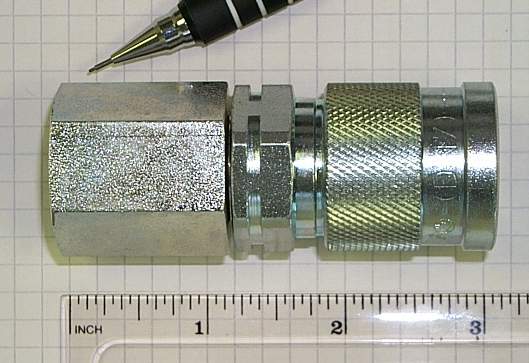

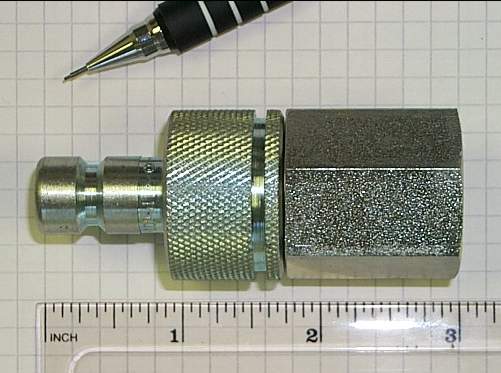

NTP(F) 1/2" LP-007-0-NP521-.. LP-007-2-NP521-.. LP-007-1-NP521-..
BSPP(M) with 60° Female cone (usually to fit hose ends with BSP swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple
BSPP(M) 3/8" w/60° F cone LP-007-0-VR017-.. LP-007-2-VR017-.. --
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple

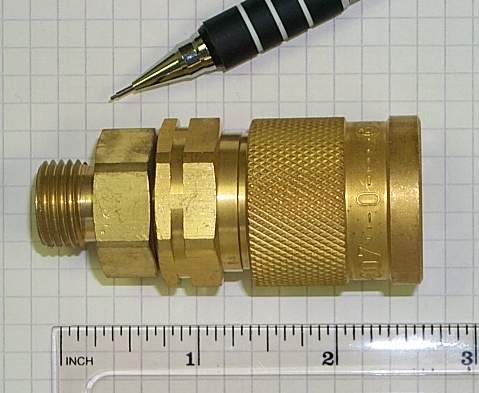

M16 x 1.5 LP-007-0-D0816-.. LP-007-2-D0816-.. --
M16 x 1.5 bulkhead mount LP-007-0-DV010-.. LP-007-2-DV010-.. --
EO (Ermeto) to fit tube & ferrule
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple
M14 x 1.5
8mm tube OD (Light)		 LP-007-0-L0814-.. LP-007-2-L0814-.. --
M16 x 1.5

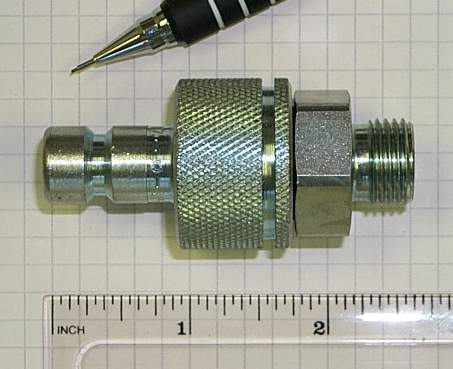

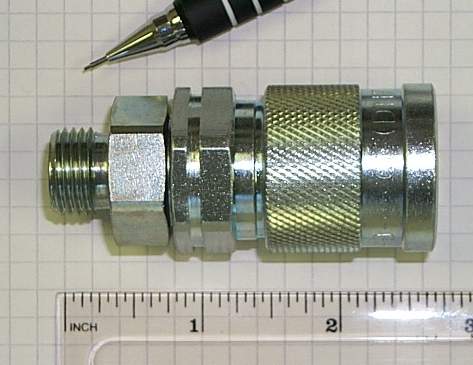

10mm tube OD (Light)		 LP-007-0-L1016-.. LP-007-2-L1016-.. --
M18 x 1.5
12mm OD tube (Light)		 LP-007-0-L1218-.. LP-007-2-L1218-.. --
M18 x 1.5

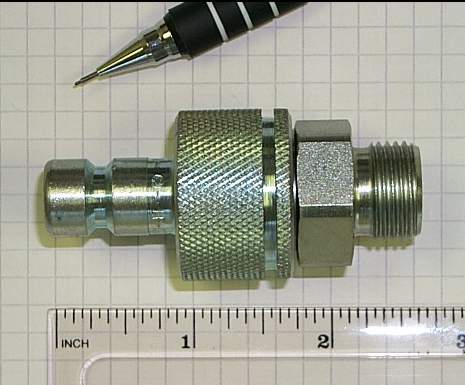

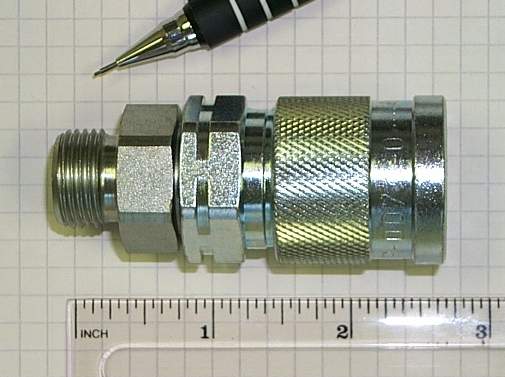

10mm OD tube (Heavy)		 LP-007-0-S1018-.. LP-007-2-S1018-.. --

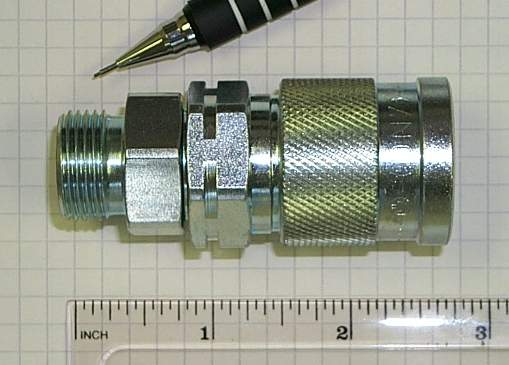

M20 x 1.5

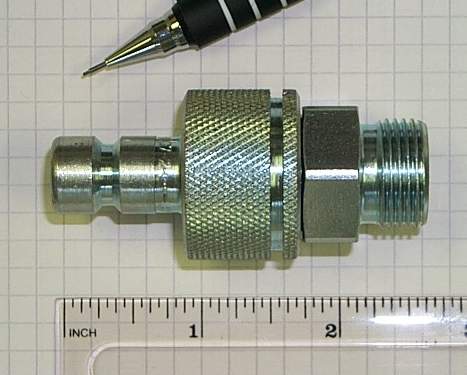

12mm OD tube (Heavy)		 LP-007-0-S1220-.. LP-007-2-S1220-.. --
Hose barbs
End fitting Self-sealing Coupling Self-sealing Nipple Thru type Nipple

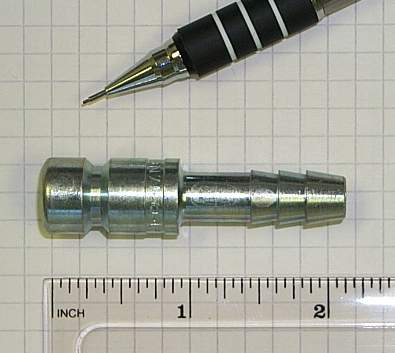

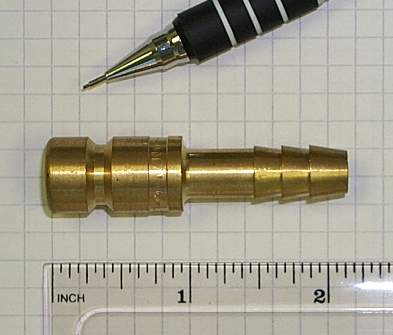

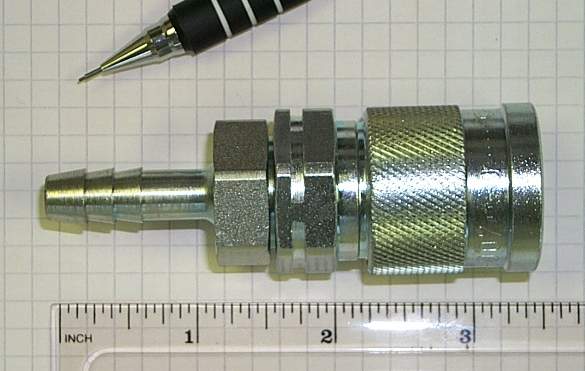

Hose Barb 11/32" (9mm) LP-007-0-SL009-.. LP-007-2-SL009-.. LP-007-1-SL009-..

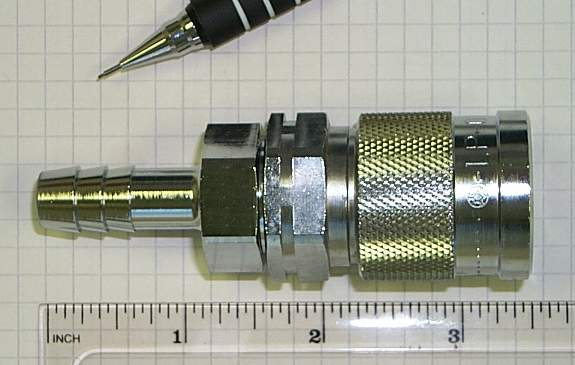

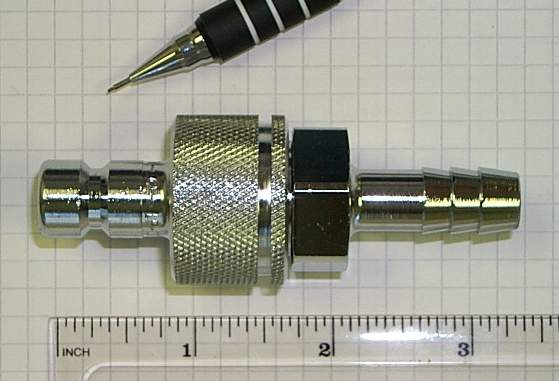

Hose Barb 7/16" (11mm) LP-007-0-SL011-.. LP-007-2-SL011-.. LP-007-1-SL011-..

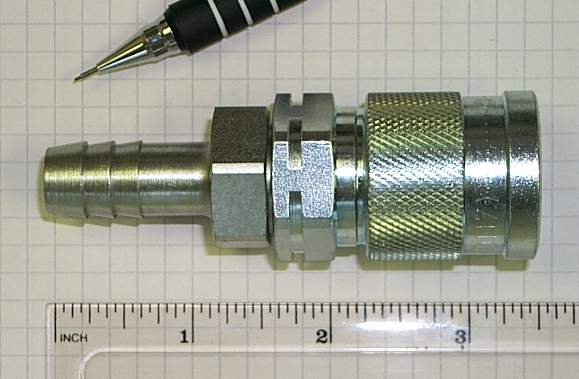

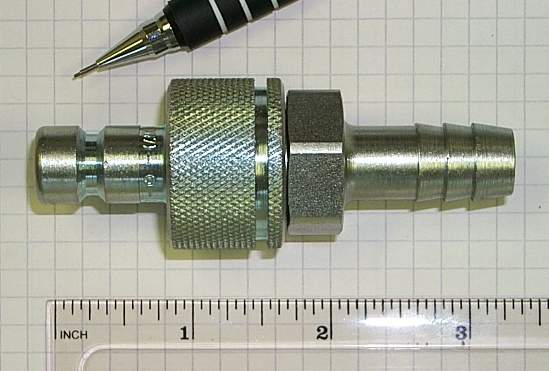

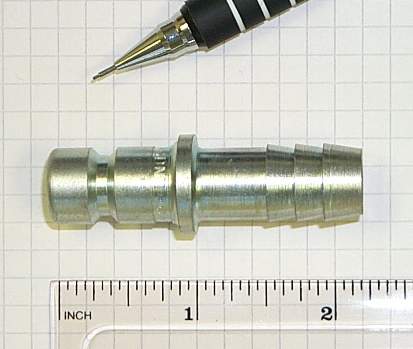

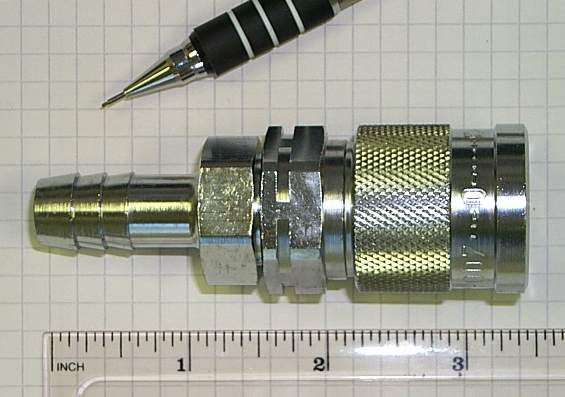

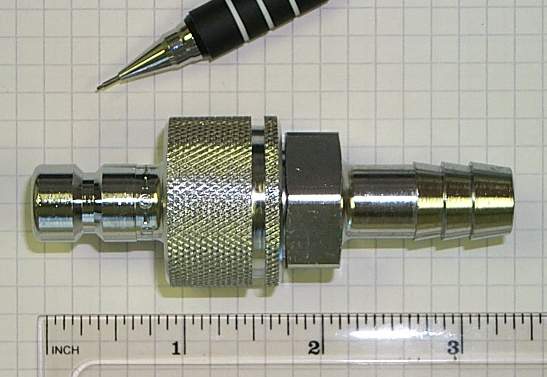

Hose Barb 1/2" (13mm) LP-007-0-SL013-.. LP-007-2-SL013-.. LP-007-1-SL013-..

Dust Caps & Dust Plugs - Part numbers for Series LP-007

Material Plugs for Couplings (Female side) Caps for Adapters (Male side)
Non-pressure retaining1 LP-007-6-74-KU LP-007-5-74-KU
Pressure retaining2 LP-007-6-11 LP-007-5-11-1 (Nitrile)LP-007-5-11-2 (Viton)LP-007-5-11-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey)2. Zinc-plated steel body, nickel-plated steel chain and retaining ring

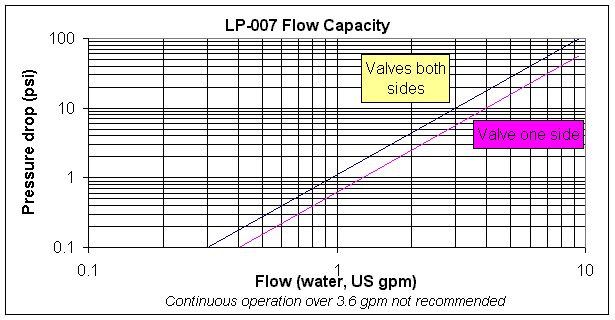

Flow Capacity

Flow Capacity for LP-007

Maxbar logo

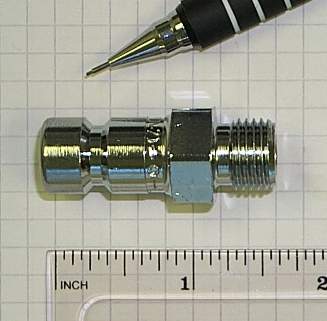

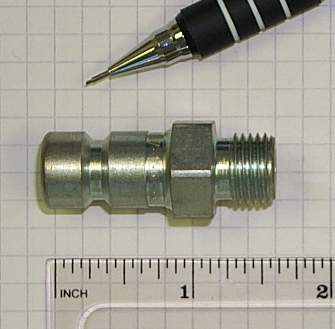

1/4" BSPP(M), Thru type Nipple

Partial Part Number: LP-007-1-WR013-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-WR013-11
 LP-007-1-WR013-11
Brass, passivated LP-007-1-WR013-21
 --
Brass, chrome plated LP-007-1-WR013-22
 LP-007-1-WR013-22
Steel, 316 stainless LP-007-1-WR013-01
 --
Steel, electroless nickel pl. LP-007-1-WR013-13
 --
Brass, electroless nickel pl. LP-007-1-WR013-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

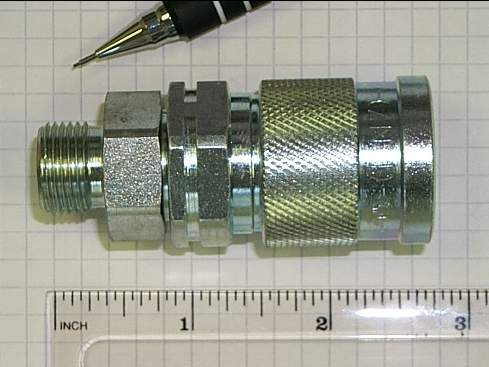

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-007-0-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-WR017-11-1
 LP-007-0-WR017-11-2
 LP-007-0-WR017-11-4
 LP-007-0-WR017-11
Brass, passivated LP-007-0-WR017-21-1
 LP-007-0-WR017-21-2
 LP-007-0-WR017-21-4
 --
Brass, chrome plated LP-007-0-WR017-22-1
 LP-007-0-WR017-22-2
 LP-007-0-WR017-22-4

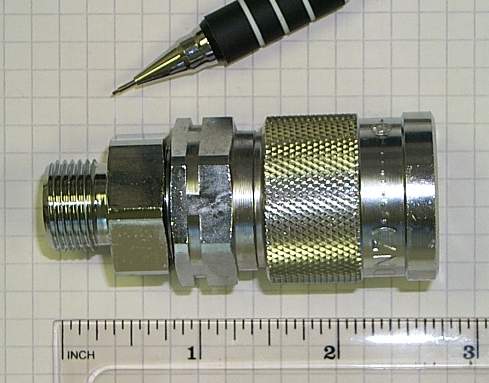

 LP-007-0-WR017-22
Steel, 316 stainless LP-007-0-WR017-01-1
 LP-007-0-WR017-01-2
 LP-007-0-WR017-01-4
 --
Steel, electroless nickel pl. LP-007-0-WR017-13-1
 LP-007-0-WR017-13-2
 LP-007-0-WR017-13-4
 --
Brass, electroless nickel pl. LP-007-0-WR017-24-1
 LP-007-0-WR017-24-2
 LP-007-0-WR017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

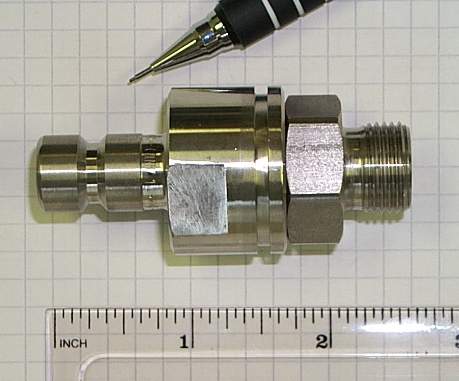

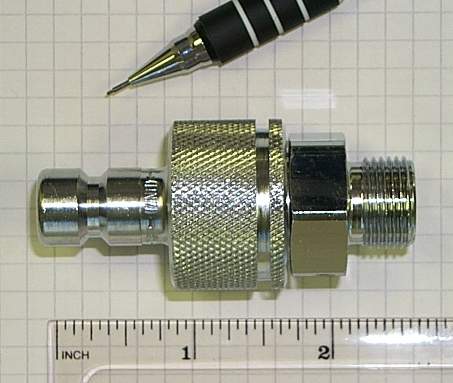

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-007-2-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-WR017-11-1
 LP-007-2-WR017-11-2
 LP-007-2-WR017-11-4

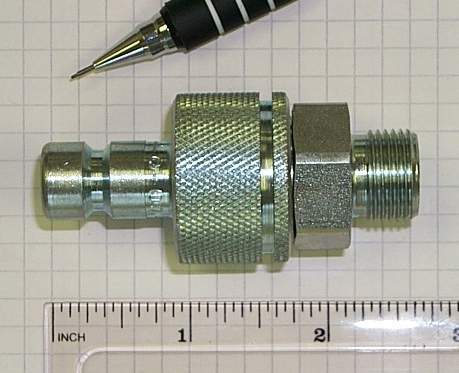

 LP-007-2-WR017-11
Brass, passivated LP-007-2-WR017-21-1
 LP-007-2-WR017-21-2
 LP-007-2-WR017-21-4
 --
Brass, chrome plated LP-007-2-WR017-22-1
 LP-007-2-WR017-22-2
 LP-007-2-WR017-22-4
 LP-007-2-WR017-22
Steel, 316 stainless LP-007-2-WR017-01-1
 LP-007-2-WR017-01-2
 LP-007-2-WR017-01-4
 LP-007-2-WR017-01
Steel, electroless nickel pl. LP-007-2-WR017-13-1
 LP-007-2-WR017-13-2
 LP-007-2-WR017-13-4
 --
Brass, electroless nickel pl. LP-007-2-WR017-24-1
 LP-007-2-WR017-24-2
 LP-007-2-WR017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

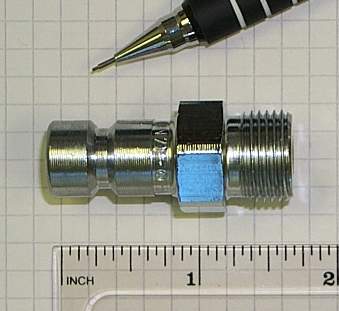

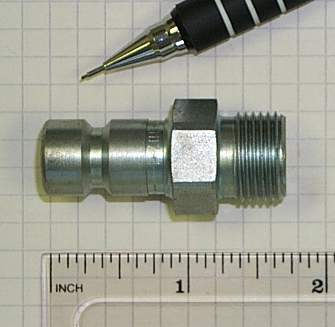

3/8" BSPP(M), Thru type Nipple

Partial Part Number: LP-007-1-WR017-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-WR017-11
 LP-007-1-WR017-11
Brass, passivated LP-007-1-WR017-21
 --
Brass, chrome plated LP-007-1-WR017-22
 LP-007-1-WR017-22
Steel, 316 stainless LP-007-1-WR017-01
 --
Steel, electroless nickel pl. LP-007-1-WR017-13
 --
Brass, electroless nickel pl. LP-007-1-WR017-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

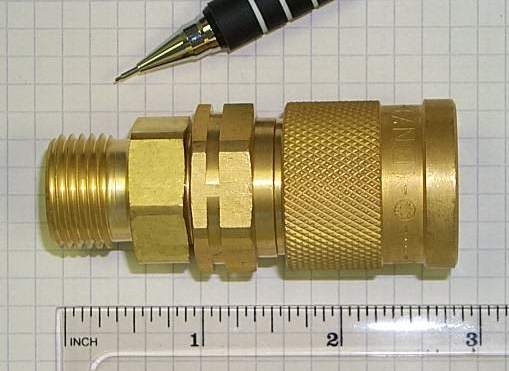

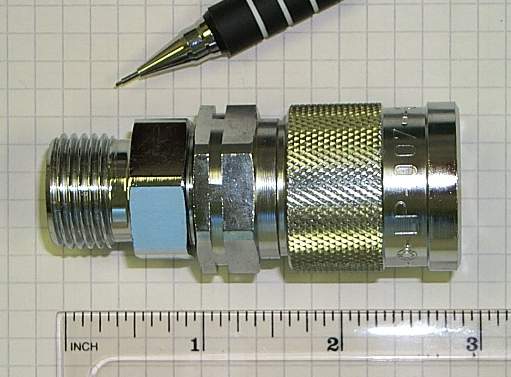

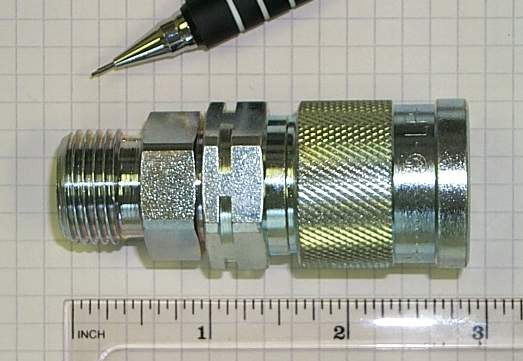

1/2" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-007-0-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-WR021-11-1
 LP-007-0-WR021-11-2
 LP-007-0-WR021-11-4
 LP-007-0-WR021-11
Brass, passivated LP-007-0-WR021-21-1
 LP-007-0-WR021-21-2
 LP-007-0-WR021-21-4
 LP-007-0-WR021-21
Brass, chrome plated LP-007-0-WR021-22-1
 LP-007-0-WR021-22-2
 LP-007-0-WR021-22-4
 LP-007-0-WR021-22
Steel, 316 stainless LP-007-0-WR021-01-1
 LP-007-0-WR021-01-2
 LP-007-0-WR021-01-4
 --
Steel, electroless nickel pl. LP-007-0-WR021-13-1
 LP-007-0-WR021-13-2
 LP-007-0-WR021-13-4
 --
Brass, electroless nickel pl. LP-007-0-WR021-24-1
 LP-007-0-WR021-24-2
 LP-007-0-WR021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Maxbar logo

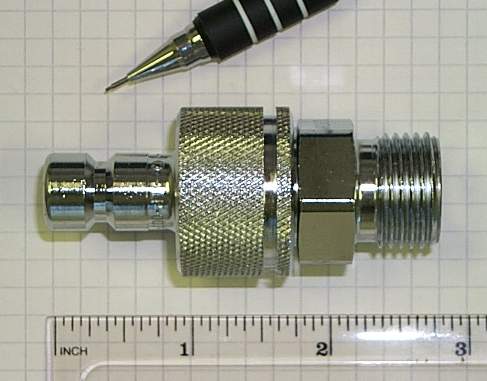

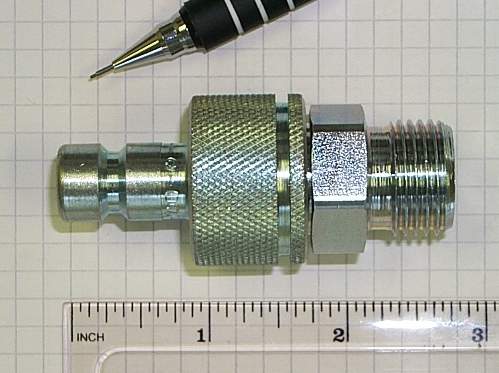

1/2" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-007-2-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-WR021-11-1
 LP-007-2-WR021-11-2
 LP-007-2-WR021-11-4
 LP-007-2-WR021-11
Brass, passivated LP-007-2-WR021-21-1
 LP-007-2-WR021-21-2
 LP-007-2-WR021-21-4
 --
Brass, chrome plated LP-007-2-WR021-22-1
 LP-007-2-WR021-22-2
 LP-007-2-WR021-22-4
 LP-007-2-WR021-22
Steel, 316 stainless LP-007-2-WR021-01-1
 LP-007-2-WR021-01-2
 LP-007-2-WR021-01-4
 --
Steel, electroless nickel pl. LP-007-2-WR021-13-1
 LP-007-2-WR021-13-2
 LP-007-2-WR021-13-4
 --
Brass, electroless nickel pl. LP-007-2-WR021-24-1
 LP-007-2-WR021-24-2
 LP-007-2-WR021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" BSPP(M), Thru type Nipple

Partial Part Number: LP-007-1-WR021-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-WR021-11
 --
Brass, passivated LP-007-1-WR021-21
 --
Brass, chrome plated LP-007-1-WR021-22
 --
Steel, 316 stainless LP-007-1-WR021-01
 --
Steel, electroless nickel pl. LP-007-1-WR021-13
 --
Brass, electroless nickel pl. LP-007-1-WR021-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

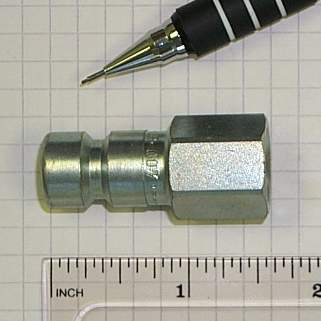

1/4" BSPP(F), Thru Type Nipple

Partial Part Number: LP-007-1-WR513-..

Find complete part numbers below:

Material Part Number Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-1-WR513-11
 LP-007-1-WR513-11
Brass, passivated LP-007-1-WR513-21
 --
Brass, chrome plated LP-007-1-WR513-22
 --
Steel, 316 stainless LP-007-1-WR513-01
 LP-007-1-WR513-01
Steel, electroless nickel pl. LP-007-1-WR513-13
 --
Brass, electroless nickel pl. LP-007-1-WR513-24
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

3/8" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-007-0-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-WR517-11-1
 LP-007-0-WR517-11-2
 LP-007-0-WR517-11-4
 LP-007-0-WR517-11
Brass, passivated LP-007-0-WR517-21-1
 LP-007-0-WR517-21-2
 LP-007-0-WR517-21-4

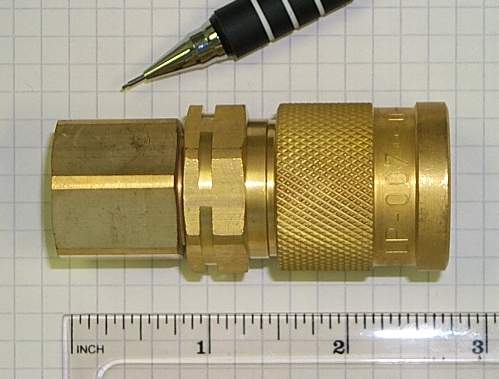

 LP-007-0-WR517-21
Brass, chrome plated LP-007-0-WR517-22-1
 LP-007-0-WR517-22-2
 LP-007-0-WR517-22-4
 LP-007-0-WR517-22
Steel, 316 stainless LP-007-0-WR517-01-1
 LP-007-0-WR517-01-2
 LP-007-0-WR517-01-4
 --
Steel, electroless nickel pl. LP-007-0-WR517-13-1
 LP-007-0-WR517-13-2
 LP-007-0-WR517-13-4
 --
Brass, electroless nickel pl. LP-007-0-WR517-24-1
 LP-007-0-WR517-24-2
 LP-007-0-WR517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

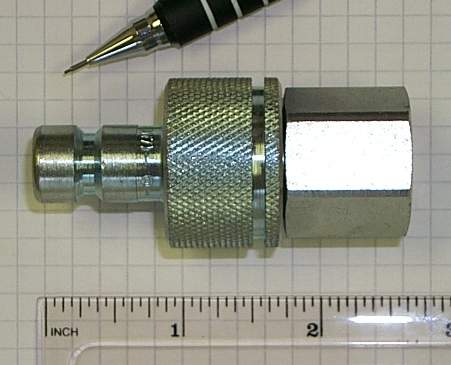

3/8" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-007-2-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-WR517-11-1
 LP-007-2-WR517-11-2
 LP-007-2-WR517-11-4
 LP-007-2-WR517-11
Brass, passivated LP-007-2-WR517-21-1
 LP-007-2-WR517-21-2
 LP-007-2-WR517-21-4
 --
Brass, chrome plated LP-007-2-WR517-22-1
 LP-007-2-WR517-22-2
 LP-007-2-WR517-22-4

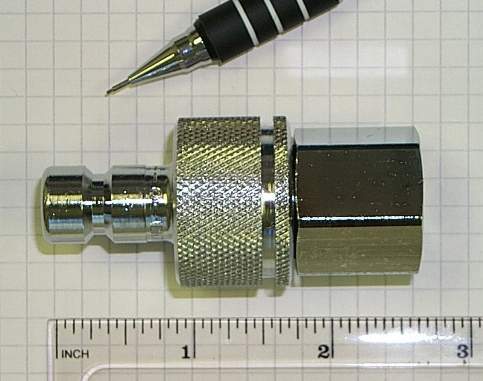

 LP-007-2-WR517-22
Steel, 316 stainless LP-007-2-WR517-01-1
 LP-007-2-WR517-01-2
 LP-007-2-WR517-01-4
 --
Steel, electroless nickel pl. LP-007-2-WR517-13-1
 LP-007-2-WR517-13-2
 LP-007-2-WR517-13-4
 --
Brass, electroless nickel pl. LP-007-2-WR517-24-1
 LP-007-2-WR517-24-2
 LP-007-2-WR517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

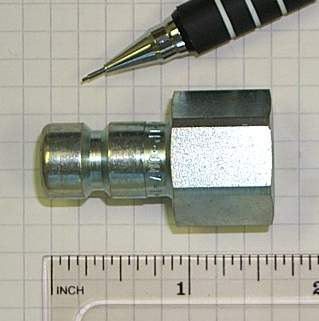

3/8" BSPP(F), Thru type Nipple

Partial Part Number: LP-007-1-WR517-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-WR517-11
 LP-007-1-WR517-11
Brass, passivated LP-007-1-WR517-21
 --
Brass, chrome plated LP-007-1-WR517-22
 --
Steel, 316 stainless LP-007-1-WR517-01
 --
Steel, electroless nickel pl. LP-007-1-WR517-13
 --
Brass, electroless nickel pl. LP-007-1-WR517-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/2" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-007-0-WR521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-WR521-11-1
 LP-007-0-WR521-11-2
 LP-007-0-WR521-11-4
 LP-007-0-WR521-11
Brass, passivated LP-007-0-WR521-21-1
 LP-007-0-WR521-21-2
 LP-007-0-WR521-21-4
 LP-007-0-WR521-21
Brass, chrome plated LP-007-0-WR521-22-1
 LP-007-0-WR521-22-2
 LP-007-0-WR521-22-4
 --
Steel, 316 stainless LP-007-0-WR521-01-1
 LP-007-0-WR521-01-2
 LP-007-0-WR521-01-4
 --
Steel, electroless nickel pl. LP-007-0-WR521-13-1
 LP-007-0-WR521-13-2
 LP-007-0-WR521-13-4
 --
Brass, electroless nickel pl. LP-007-0-WR521-24-1
 LP-007-0-WR521-24-2
 LP-007-0-WR521-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-007-2-WR521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-WR521-11-1
 LP-007-2-WR521-11-2
 LP-007-2-WR521-11-4
 LP-007-2-WR521-11
Brass, passivated LP-007-2-WR521-21-1
 LP-007-2-WR521-21-2
 LP-007-2-WR521-21-4
 --
Brass, chrome plated LP-007-2-WR521-22-1
 LP-007-2-WR521-22-2
 LP-007-2-WR521-22-4
 --
Steel, 316 stainless LP-007-2-WR521-01-1
 LP-007-2-WR521-01-2
 LP-007-2-WR521-01-4
 --
Steel, electroless nickel pl. LP-007-2-WR521-13-1
 LP-007-2-WR521-13-2
 LP-007-2-WR521-13-4
 --
Brass, electroless nickel pl. LP-007-2-WR521-24-1
 LP-007-2-WR521-24-2
 LP-007-2-WR521-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" BSPP(F), Thru type Nipple

Partial Part Number: LP-007-1-WR521-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-WR521-11
 --
Brass, passivated LP-007-1-WR521-21
 --
Brass, chrome plated LP-007-1-WR521-22
 --
Steel, 316 stainless LP-007-1-WR521-01
 --
Steel, electroless nickel pl. LP-007-1-WR521-13
 --
Brass, electroless nickel pl. LP-007-1-WR521-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/4" NPT(M), Thru type Nipple

Partial Part Number: LP-007-1-NP013-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP013-11
 --
Brass, passivated LP-007-1-NP013-21
 --
Brass, chrome plated LP-007-1-NP013-22
 --
Steel, 316 stainless LP-007-1-NP013-01
 --
Steel, electroless nickel pl. LP-007-1-NP013-13
 --
Brass, electroless nickel pl. LP-007-1-NP013-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/8" NPT(M), Self-sealing Coupling

Partial Part Number: LP-007-0-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-NP017-11-1
 LP-007-0-NP017-11-2
 LP-007-0-NP017-11-4
 LP-007-0-NP017-11
Brass, passivated LP-007-0-NP017-21-1
 LP-007-0-NP017-21-2
 LP-007-0-NP017-21-4
 --
Brass, chrome plated LP-007-0-NP017-22-1
 LP-007-0-NP017-22-2
 LP-007-0-NP017-22-4
 --
Steel, 316 stainless LP-007-0-NP017-01-1
 LP-007-0-NP017-01-2
 LP-007-0-NP017-01-4
 --
Steel, electroless nickel pl. LP-007-0-NP017-13-1
 LP-007-0-NP017-13-2
 LP-007-0-NP017-13-4
 --
Brass, electroless nickel pl. LP-007-0-NP017-24-1
 LP-007-0-NP017-24-2
 LP-007-0-NP017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" NPT(M), Self-sealing Nipple

Partial Part Number: LP-007-2-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-NP017-11-1
 LP-007-2-NP017-11-2
 LP-007-2-NP017-11-4
 LP-007-2-NP017-11
Brass, passivated LP-007-2-NP017-21-1
 LP-007-2-NP017-21-2
 LP-007-2-NP017-21-4
 --
Brass, chrome plated LP-007-2-NP017-22-1
 LP-007-2-NP017-22-2
 LP-007-2-NP017-22-4
 --
Steel, 316 stainless LP-007-2-NP017-01-1
 LP-007-2-NP017-01-2
 LP-007-2-NP017-01-4
 --
Steel, electroless nickel pl. LP-007-2-NP017-13-1
 LP-007-2-NP017-13-2
 LP-007-2-NP017-13-4
 --
Brass, electroless nickel pl. LP-007-2-NP017-24-1
 LP-007-2-NP017-24-2
 LP-007-2-NP017-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" NPT(M), Thru type Nipple

Partial Part Number: LP-007-1-NP017-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP017-11
 --
Brass, passivated LP-007-1-NP017-21
 --
Brass, chrome plated LP-007-1-NP017-22
 --
Steel, 316 stainless LP-007-1-NP017-01
 --
Steel, electroless nickel pl. LP-007-1-NP017-13
 --
Brass, electroless nickel pl. LP-007-1-NP017-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/2" NPT(M), Self-sealing Coupling

Partial Part Number: LP-007-0-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-NP021-11-1
 LP-007-0-NP021-11-2
 LP-007-0-NP021-11-4
 LP-007-0-NP021-11
Brass, passivated LP-007-0-NP021-21-1
 LP-007-0-NP021-21-2
 LP-007-0-NP021-21-4
 --
Brass, chrome plated LP-007-0-NP021-22-1
 LP-007-0-NP021-22-2
 LP-007-0-NP021-22-4
 --
Steel, 316 stainless LP-007-0-NP021-01-1
 LP-007-0-NP021-01-2
 LP-007-0-NP021-01-4
 --
Steel, electroless nickel pl. LP-007-0-NP021-13-1
 LP-007-0-NP021-13-2
 LP-007-0-NP021-13-4
 --
Brass, electroless nickel pl. LP-007-0-NP021-24-1
 LP-007-0-NP021-24-2
 LP-007-0-NP021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(M), Self-sealing Nipple

Partial Part Number: LP-007-2-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-NP021-11-1
 LP-007-2-NP021-11-2
 LP-007-2-NP021-11-4
 LP-007-2-NP021-11
Brass, passivated LP-007-2-NP021-21-1
 LP-007-2-NP021-21-2
 LP-007-2-NP021-21-4
 --
Brass, chrome plated LP-007-2-NP021-22-1
 LP-007-2-NP021-22-2
 LP-007-2-NP021-22-4
 --
Steel, 316 stainless LP-007-2-NP021-01-1
 LP-007-2-NP021-01-2
 LP-007-2-NP021-01-4
 --
Steel, electroless nickel pl. LP-007-2-NP021-13-1
 LP-007-2-NP021-13-2
 LP-007-2-NP021-13-4
 --
Brass, electroless nickel pl. LP-007-2-NP021-24-1
 LP-007-2-NP021-24-2
 LP-007-2-NP021-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(M), Thru type Nipple

Partial Part Number: LP-007-1-NP021-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP021-11
 --
Brass, passivated LP-007-1-NP021-21
 --
Brass, chrome plated LP-007-1-NP021-22
 --
Steel, 316 stainless LP-007-1-NP021-01
 --
Steel, electroless nickel pl. LP-007-1-NP021-13
 --
Brass, electroless nickel pl. LP-007-1-NP021-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/4" NPT(F), Thru type Nipple

Partial Part Number: LP-007-1-NP513-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP513-11
 --
Brass, passivated LP-007-1-NP513-21
 --
Brass, chrome plated LP-007-1-NP513-22
 --
Steel, 316 stainless LP-007-1-NP513-01
 --
Steel, electroless nickel pl. LP-007-1-NP513-13
 --
Brass, electroless nickel pl. LP-007-1-NP513-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/8" NPT(F), Self-sealing Coupling

Partial Part Number: LP-007-0-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-NP517-11-1
 LP-007-0-NP517-11-2
 LP-007-0-NP517-11-4
 LP-007-0-NP517-11
Brass, passivated LP-007-0-NP517-21-1
 LP-007-0-NP517-21-2
 LP-007-0-NP517-21-4
 --
Brass, chrome plated LP-007-0-NP517-22-1
 LP-007-0-NP517-22-2
 LP-007-0-NP517-22-4
 --
Steel, 316 stainless LP-007-0-NP517-01-1
 LP-007-0-NP517-01-2
 LP-007-0-NP517-01-4
 --
Steel, electroless nickel pl. LP-007-0-NP517-13-1
 LP-007-0-NP517-13-2
 LP-007-0-NP517-13-4
 --
Brass, electroless nickel pl. LP-007-0-NP517-24-1
 LP-007-0-NP517-24-2
 LP-007-0-NP517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" NPT(F), Self-sealing Nipple

Partial Part Number: LP-007-2-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-NP517-11-1
 LP-007-2-NP517-11-2
 LP-007-2-NP517-11-4
 LP-007-2-NP517-11
Brass, passivated LP-007-2-NP517-21-1
 LP-007-2-NP517-21-2
 LP-007-2-NP517-21-4
 --
Brass, chrome plated LP-007-2-NP517-22-1
 LP-007-2-NP517-22-2
 LP-007-2-NP517-22-4
 --
Steel, 316 stainless LP-007-2-NP517-01-1
 LP-007-2-NP517-01-2
 LP-007-2-NP517-01-4
 --
Steel, electroless nickel pl. LP-007-2-NP517-13-1
 LP-007-2-NP517-13-2
 LP-007-2-NP517-13-4
 --
Brass, electroless nickel pl. LP-007-2-NP517-24-1
 LP-007-2-NP517-24-2
 LP-007-2-NP517-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" NPT(F), Thru type Nipple

Partial Part Number: LP-007-1-NP517-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP517-11
 --
Brass, passivated LP-007-1-NP517-21
 --
Brass, chrome plated LP-007-1-NP517-22
 --
Steel, 316 stainless LP-007-1-NP517-01
 --
Steel, electroless nickel pl. LP-007-1-NP517-13
 --
Brass, electroless nickel pl. LP-007-1-NP517-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/2" NPT(F), Self-sealing Coupling

Partial Part Number: LP-007-0-NP521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-NP521-11-1
 LP-007-0-NP521-11-2
 LP-007-0-NP521-11-4
 LP-007-0-NP521-11
Brass, passivated LP-007-0-NP521-21-1
 LP-007-0-NP521-21-2
 LP-007-0-NP521-21-4
 --
Brass, chrome plated LP-007-0-NP521-22-1
 LP-007-0-NP521-22-2
 LP-007-0-NP521-22-4
 --
Steel, 316 stainless LP-007-0-NP521-01-1
 LP-007-0-NP521-01-2
 LP-007-0-NP521-01-4
 --
Steel, electroless nickel pl. LP-007-0-NP521-13-1
 LP-007-0-NP521-13-2
 LP-007-0-NP521-13-4
 --
Brass, electroless nickel pl. LP-007-0-NP521-24-1
 LP-007-0-NP521-24-2
 LP-007-0-NP521-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(F), Self-sealing Nipple

Partial Part Number: LP-007-2-NP521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-NP521-11-1
 LP-007-2-NP521-11-2
 LP-007-2-NP521-11-4
 LP-007-2-NP521-11
Brass, passivated LP-007-2-NP521-21-1
 LP-007-2-NP521-21-2
 LP-007-2-NP521-21-4
 --
Brass, chrome plated LP-007-2-NP521-22-1
 LP-007-2-NP521-22-2
 LP-007-2-NP521-22-4
 --
Steel, 316 stainless LP-007-2-NP521-01-1
 LP-007-2-NP521-01-2
 LP-007-2-NP521-01-4
 --
Steel, electroless nickel pl. LP-007-2-NP521-13-1
 LP-007-2-NP521-13-2
 LP-007-2-NP521-13-4
 --
Brass, electroless nickel pl. LP-007-2-NP521-24-1
 LP-007-2-NP521-24-2
 LP-007-2-NP521-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(F), Thru type Nipple

Partial Part Number: LP-007-1-NP521-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-NP521-11
 --
Brass, passivated LP-007-1-NP521-21
 --
Brass, chrome plated LP-007-1-NP521-22
 --
Steel, 316 stainless LP-007-1-NP521-01
 --
Steel, electroless nickel pl. LP-007-1-NP521-13
 --
Brass, electroless nickel pl. LP-007-1-NP521-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-007-0-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-VR017-11-1
 LP-007-0-VR017-11-2
 LP-007-0-VR017-11-4
 --
Steel, 316 stainless LP-007-0-VR017-01-1
 LP-007-0-VR017-01-2
 LP-007-0-VR017-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-007-2-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-VR017-11-1
 LP-007-2-VR017-11-2
 LP-007-2-VR017-11-4
 --
Steel, 316 stainless LP-007-2-VR017-01-1
 LP-007-2-VR017-01-2
 LP-007-2-VR017-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-007-0-D0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-D0816-11-1
 LP-007-0-D0816-11-2
 LP-007-0-D0816-11-4
 --
Brass, passivated LP-007-0-D0816-21-1
 LP-007-0-D0816-21-2
 LP-007-0-D0816-21-4
 LP-007-0-D0816-21
Steel, 316 stainless LP-007-0-D0816-01-1
 LP-007-0-D0816-01-2
 LP-007-0-D0816-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-007-2-D0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-D0816-11-1
 LP-007-2-D0816-11-2
 LP-007-2-D0816-11-4
 --
Steel, 316 stainless LP-007-2-D0816-01-1
 LP-007-2-D0816-02-1
 LP-007-2-D0816-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-007-0-DV010-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-DV010-11-1
 LP-007-0-DV010-11-2
 LP-007-0-DV010-11-4
 --
Steel, 316 stainless LP-007-0-DV010-01-1
 LP-007-0-DV010-01-2
 LP-007-0-DV010-01-4
 --
Steel, electroless nickel pl. LP-007-0-DV010-13-1
 LP-007-0-DV010-13-2
 LP-007-0-DV010-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

Partial Part Number: LP-007-2-DV010-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-DV010-11-1
 LP-007-2-DV010-11-2
 LP-007-2-DV010-11-4
 --
Steel, 316 stainless LP-007-2-DV010-01-1
 LP-007-2-DV010-01-2
 LP-007-2-DV010-01-4
 --
Steel, electroless nickel pl. LP-007-2-DV010-13-1
 LP-007-2-DV010-13-2
 LP-007-2-DV010-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M14 x 1.5 8mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-007-0-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-L0814-11-1
 LP-007-0-L0814-11-2
 LP-007-0-L0814-11-4
 --
Steel, 316 stainless LP-007-0-L0814-01-1
 LP-007-0-L0814-01-2
 LP-007-0-L0814-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M14 x 1.5 10mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-007-2-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-L0814-11-1
 LP-007-2-L0814-11-2
 LP-007-2-L0814-11-4
 --
Steel, 316 stainless LP-007-2-L0814-01-1
 LP-007-2-L0814-01-2
 LP-007-2-L0814-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-007-0-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-L1016-11-1
 LP-007-0-L1016-11-2
 LP-007-0-L1016-11-4
 LP-007-0-L1016-11
Steel, 316 stainless LP-007-0-L1016-01-1
 LP-007-0-L1016-01-2
 LP-007-0-L1016-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-007-2-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-L1016-11-1
 LP-007-2-L1016-11-2
 LP-007-2-L1016-11-4
 LP-007-2-L1016-11
Steel, 316 stainless LP-007-2-L1016-01-1
 LP-007-2-L1016-01-2
 LP-007-2-L1016-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 12mm tube OD (Light), bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-007-0-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-L1218-11-1
 LP-007-0-L1218-11-2
 LP-007-0-L1218-11-4
 --
Steel, 316 stainless LP-007-0-L1218-01-1
 LP-007-0-L1218-01-2
 LP-007-0-L1218-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 12mm tube OD (Light), bulkhead mount, Self-sealing Nipple

Partial Part Number: LP-007-2-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-L1218-11-1
 LP-007-2-L1218-11-2
 LP-007-2-L1218-11-4
 --
Steel, 316 stainless LP-007-2-L1218-01-1
 LP-007-2-L1218-01-2
 LP-007-2-L1218-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: LP-007-0-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-S1018-11-1
 LP-007-0-S1018-11-2
 LP-007-0-S1018-11-4
 LP-007-0-S1018-11
Steel, 316 stainless LP-007-0-S1018-01-1
 LP-007-0-S1018-01-2
 LP-007-0-S1018-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: LP-007-2-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-S1018-11-1
 LP-007-2-S1018-11-2
 LP-007-2-S1018-11-4
 LP-007-2-S1018-11
Steel, 316 stainless LP-007-2-S1018-01-1
 LP-007-2-S1018-01-2
 LP-007-2-S1018-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M20 x 1.5 12mm tube OD (Light), bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-007-0-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-S1220-11-1
 LP-007-0-S1220-11-2
 LP-007-0-S1220-11-4
 LP-007-0-S1220-11
Steel, 316 stainless LP-007-0-S1220-01-1
 LP-007-0-S1220-01-2
 LP-007-0-S1220-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M20 x 1.5 12mm tube OD (Light), bulkhead mount, Self-sealing Nipple

Partial Part Number: LP-007-2-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-S1220-11-1
 LP-007-2-S1220-11-2
 LP-007-2-S1220-11-4
 LP-007-2-S1220-11
Steel, 316 stainless LP-007-2-S1220-01-1
 LP-007-2-S1220-01-2
 LP-007-2-S1220-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

11/32" Hose Barb (9mm), Self-sealing Coupling

Partial Part Number: LP-007-0-SL009-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-SL009-11-1
 LP-007-0-SL009-11-2
 LP-007-0-SL009-11-4
 LP-007-0-SL009-11
Brass, passivated LP-007-0-SL009-21-1
 LP-007-0-SL009-21-2
 LP-007-0-SL009-21-4
 --
Brass, chrome plated LP-007-0-SL009-22-1
 LP-007-0-SL009-22-2
 LP-007-0-SL009-22-4
 --
Steel, 316 stainless LP-007-0-SL009-01-1
 LP-007-0-SL009-01-2
 LP-007-0-SL009-01-4
 --
Aluminum, anodized LP-007-0-SL009-32-1
 LP-007-0-SL009-32-2
 LP-007-0-SL009-32-4
 --
Steel, electroless nickel pl. LP-007-0-SL009-13-1
 LP-007-0-SL009-13-2
 LP-007-0-SL009-13-4
 --
Brass, electroless nickel pl. LP-007-0-SL009-24-1
 LP-007-0-SL009-24-2
 LP-007-0-SL009-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

11/32" Hose Barb (9mm), Self-sealing Nipple

Partial Part Number: LP-007-2-SL009-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-SL009-11-1
 LP-007-2-SL009-11-2
 LP-007-2-SL009-11-4
 LP-007-2-SL009-11
Brass, passivated LP-007-2-SL009-21-1
 LP-007-2-SL009-21-2
 LP-007-2-SL009-21-4
 --
Brass, chrome plated LP-007-2-SL009-22-1
 LP-007-2-SL009-22-2
 LP-007-2-SL009-22-4
 --
Steel, 316 stainless LP-007-2-SL009-01-1
 LP-007-2-SL009-01-2
 LP-007-2-SL009-01-4
 --
Aluminum, anodized LP-007-2-SL009-32-1
 LP-007-2-SL009-32-2
 LP-007-2-SL009-32-4
 --
Steel, electroless nickel pl. LP-007-2-SL009-13-1
 LP-007-2-SL009-13-2
 LP-007-2-SL009-13-4
 --
Brass, electroless nickel pl. LP-007-2-SL009-24-1
 LP-007-2-SL009-24-2
 LP-007-2-SL009-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

11/32" Hose Barb (9mm), Thru type Nipple

Partial Part Number: LP-007-1-SL009-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-SL009-11
 LP-007-1-SL009-11
Brass, passivated LP-007-1-SL009-21
 LP-007-1-SL009-21
Brass, chrome plated LP-007-1-SL009-22
 --
Steel, 316 stainless LP-007-1-SL009-01
 LP-007-1-SL009-01
Steel, electroless nickel pl. LP-007-1-SL009-13
 --
Brass, electroless nickel pl. LP-007-1-SL009-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

7/16" Hose Barb (11mm), Self-sealing Coupling

Partial Part Number: LP-007-0-SL011-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-SL011-11-1
 LP-007-0-SL011-11-2
 LP-007-0-SL011-11-4
 --
Brass, passivated LP-007-0-SL011-21-1
 LP-007-0-SL011-21-2
 LP-007-0-SL011-21-4
 --
Brass, chrome plated LP-007-0-SL011-22-1
 LP-007-0-SL011-22-2
 LP-007-0-SL011-22-4
 LP-007-0-SL011-22
Steel, 316 stainless LP-007-0-SL011-01-1
 LP-007-0-SL011-01-2
 LP-007-0-SL011-01-4
 --
Aluminum, anodized LP-007-0-SL011-32-1
 LP-007-0-SL011-32-2
 LP-007-0-SL011-32-4
 --
Steel, electroless nickel pl. LP-007-0-SL011-13-1
 LP-007-0-SL011-13-2
 LP-007-0-SL011-13-4
 --
Brass, electroless nickel pl. LP-007-0-SL011-24-1
 LP-007-0-SL011-24-2
 LP-007-0-SL011-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

7/16" Hose Barb (11mm), Self-sealing Nipple

Partial Part Number: LP-007-2-SL011-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-SL011-11-1
 LP-007-2-SL011-11-2
 LP-007-2-SL011-11-4
 --
Brass, passivated LP-007-2-SL011-21-1
 LP-007-2-SL011-21-2
 LP-007-2-SL011-21-4
 --
Brass, chrome plated LP-007-2-SL011-22-1
 LP-007-2-SL011-22-2
 LP-007-2-SL011-22-4
 LP-007-2-SL011-22
Steel, 316 stainless LP-007-2-SL011-01-1
 LP-007-2-SL011-01-2
 LP-007-2-SL011-01-4
 --
Aluminum, anodized LP-007-2-SL011-32-1
 LP-007-2-SL011-32-2
 LP-007-2-SL011-32-4
 --
Steel, electroless nickel pl. LP-007-2-SL011-13-1
 LP-007-2-SL011-13-2
 LP-007-2-SL011-13-4
 --
Brass, electroless nickel pl. LP-007-2-SL011-24-1
 LP-007-2-SL011-24-2
 LP-007-2-SL011-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

7/16" Hose Barb (11mm), Thru type Nipple

Partial Part Number: LP-007-1-SL011-..-.

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-SL011-11
 --
Brass, passivated LP-007-1-SL011-21
 --
Brass, chrome plated LP-007-1-SL011-22
 --
Steel, 316 stainless LP-007-1-SL011-01
 --
Steel, electroless nickel pl. LP-007-1-SL011-13
 --
Brass, electroless nickel pl. LP-007-1-SL011-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/2" Hose Barb (13mm), Self-sealing Coupling

Partial Part Number: LP-007-0-SL013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-0-SL013-11-1
 LP-007-0-SL013-11-2
 LP-007-0-SL013-11-4
 LP-007-0-SL013-11
Brass, passivated LP-007-0-SL013-21-1
 LP-007-0-SL013-21-2
 LP-007-0-SL013-21-4
 --
Brass, chrome plated LP-007-0-SL013-22-1
 LP-007-0-SL013-22-2
 LP-007-0-SL013-22-4
 LP-007-0-SL013-22
Steel, 316 stainless LP-007-0-SL013-01-1
 LP-007-0-SL013-01-2
 LP-007-0-SL013-01-4
 --
Aluminum, anodized LP-007-0-SL013-32-1
 LP-007-0-SL013-32-2
 LP-007-0-SL013-32-4
 --
Steel, electroless nickel pl. LP-007-0-SL013-13-1
 LP-007-0-SL013-13-2
 LP-007-0-SL013-13-4
 --
Brass, electroless nickel pl. LP-007-0-SL013-24-1
 LP-007-0-SL013-24-2
 LP-007-0-SL013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" Hose Barb (13mm), Self-sealing Nipple

Partial Part Number: LP-007-2-SL013-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-007-2-SL013-11-1
 LP-007-2-SL013-11-2
 LP-007-2-SL013-11-4
 LP-007-2-SL013-11
Brass, passivated LP-007-2-SL013-21-1
 LP-007-2-SL013-21-2
 LP-007-2-SL013-21-4
 --
Brass, chrome plated LP-007-2-SL013-22-1
 LP-007-2-SL013-22-2
 LP-007-2-SL013-22-4
 LP-007-2-SL013-22
Steel, 316 stainless LP-007-2-SL013-01-1
 LP-007-2-SL013-01-2
 LP-007-2-SL013-01-4
 --
Aluminum, anodized LP-007-2-SL013-32-1
 LP-007-2-SL013-32-2
 LP-007-2-SL013-32-4
 --
Steel, electroless nickel pl. LP-007-2-SL013-13-1
 LP-007-2-SL013-13-2
 LP-007-2-SL013-13-4
 --
Brass, electroless nickel pl. LP-007-2-SL013-24-1
 LP-007-2-SL013-24-2
 LP-007-2-SL013-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" Hose Barb (13mm), Thru type Nipple

Partial Part Number: LP-007-1-SL013-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-007-1-SL013-11
 LP-007-1-SL013-11
Brass, passivated LP-007-1-SL013-21
 --
Brass, chrome plated LP-007-1-SL013-22
 --
Steel, 316 stainless LP-007-1-SL013-01
 --
Steel, electroless nickel pl. LP-007-1-SL013-13
 --
Brass, electroless nickel pl. LP-007-1-SL013-24
 --
Standard materials in bold. Other materials available.

Contact one of our sales representatives today
to inquire about a quote from Maxbar - Walther Precision USA
or call us today at 513.527.4100


Maxbar ISO CertificationsMaxbar OSHA
