Walther Coupling Model LP-003

Home » Walther Couplings » Manual Couplings: Standard » Low Pressure (LP Series) » LP-003

Coupling Information

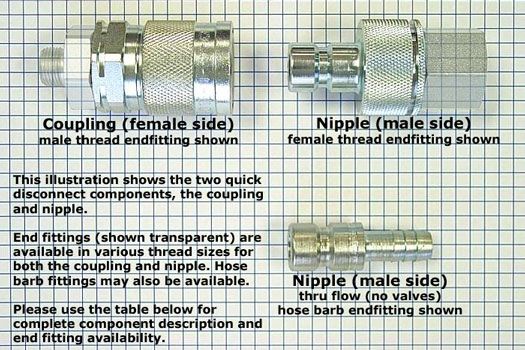

There are two basic types of LP-003 coupling. Part numbers for each are listed below.

Valve arrangement	The Coupling (Female side)	The Nipple (Male side)
Standard (with valves)	LP-003-0-...	N/A
No valves (thru type)	Use LP-003-0-... with -OV option	LP-003-1-...

low pressure walther couplings

End Fittings

(Refer to Part Number System)

BSPP (British Standard Pipe, Parallel) with shoulder
End fitting	Self-sealing Coupling	Thru type Nipple
BSPP(M) 1/8"	LP-003-0-WR010-..	LP-003-1-WR010-..
BSPP(M) 1/8" - bulkhead mount	LP-003-0-XX016-..	--
NPT (National Pipe, Tapered)
End fitting	Self-sealing Coupling	Thru type Nipple
NPT(M) 1/8"	LP-003-0-NP010-..	LP-003-1-NP010-..
EO (Ermeto) to fit tube & ferrule
End fitting	Self-sealing Coupling	Thru type Nipple
M12 x 1.5 6mm tube OD (Light)	LP-003-0-L0612-..	--
Hose barbs
End fitting	Self-sealing Coupling	Thru type Nipple
5/32" Hose Barb (4mm)	LP-003-0-SL004-..	LP-003-1-SL004-..
As above, bulkhead mount	LP-003-0-XX004-..	--
Barb & nut for 4mm ID x 6mm OD plastic tube	LP-003-0-SW004-..	LP-003-1-SW004-..

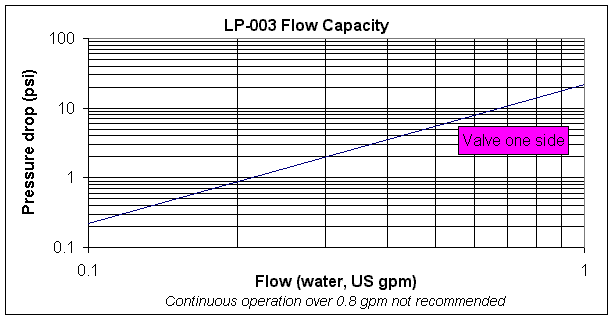

Flow Capacity

1/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-003-0-WR010-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-WR010-23-1	LP-003-0-WR010-23-2	LP-003-0-WR010-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" BSPP(M), Thru type Nipple

Partial Part Number: LP-003-1-WR010-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-003-1-WR010-23
Standard materials in bold. Other materials available.

1/8" BSPP(M), bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-003-0-XX016-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-XX016-23-1	LP-003-0-XX016-23-2	LP-003-0-XX016-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" NPT(M), Self-sealing Coupling

Partial Part Number: LP-003-0-NP010-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-NP010-23-1	LP-003-0-NP010-23-2	LP-003-0-NP010-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" NPT(M), Thru type Nipple

Partial Part Number: LP-003-1-NP010-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-003-1-NP010-23
Standard materials in bold. Other materials available.

M12 x 1.5 6mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-003-0-L0612-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-L0612-23-1	LP-003-0-L0612-23-2	LP-003-0-L0612-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

5/32" Hose Barb (4mm), Self-sealing Coupling

Partial Part Number: LP-003-0-SL004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-SL004-23-1	LP-003-0-SL004-23-2	LP-003-0-SL004-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

5/32" Hose Barb (4mm), Thru type Nipple

Partial Part Number: LP-003-1-SL004-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-003-1-SL004-23
Standard materials in bold. Other materials available.

5/32" Hose Barb (4mm), bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-003-0-XX004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-XX004-23-1	LP-003-0-XX004-23-2	LP-003-0-XX004-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Self-sealing Coupling

Partial Part Number: LP-003-0-SW004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-003-0-SW004-23-1	LP-003-0-SW004-23-2	LP-003-0-SW004-23-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Thru type Nipple

Partial Part Number: LP-003-1-SW004

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-003-1-SW004-23
Standard materials in bold. Other materials available.
