Walther Coupling Model LP-002

Home » Walther Couplings » Manual Couplings: Standard » Low Pressure (LP Series) » LP-002

Coupling Information

There are two basic types of LP-002 coupling. Part numbers for each are listed below.

Valve arrangement	The Coupling (Female side)	The Nipple (Male side)
Standard (with valves)	LP-002-0-...	N/A
No valves (thru type)	Use LP-002-0-... with -OV option	LP-002-1-...

LP-002 quick connect coupling

End Fittings

(Refer to Part Number System)

BSPP (British Standard Pipe, Parallel) with shoulder
End fitting	Self-sealing Coupling	Thru type Nipple
BSPP(M) 1/8"	LP-002-0-WR010-..	LP-002-1-WR010-..
BSPP(F) 1/8"	LP-002-0-WR510-..	LP-002-1-WR510-..
NPT (National Pipe, Tapered)
End fitting	Self-sealing Coupling	Thru type Nipple
NPT(M) 1/8"	LP-002-0-NP010-..	LP-002-1-NP010-..
NPT(F) 1/8"	LP-002-0-NP510-..	LP-002-1-NP510-..
Hose barbs
End fitting	Self-sealing Coupling	Thru type Nipple
Hose Barb 5/32" (4mm)	LP-002-0-SL004-..	LP-002-1-SL004-..
Hose Barb 1/4" (6mm)	LP-002-0-SL006-..	LP-002-1-SL006-..

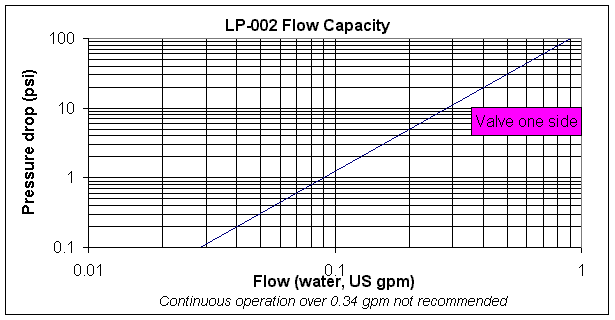

Flow Capacity

1/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-002-0-WR010-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-WR010-23-1	LP-002-0-WR010-23-2	LP-002-0-WR010-23-4
Brass, chrome plated	LP-002-0-WR010-22-1	LP-002-0-WR010-22-2	LP-002-0-WR010-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" BSPP(M), Thru type Nipple

Partial Part Number: LP-002-1-WR010-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

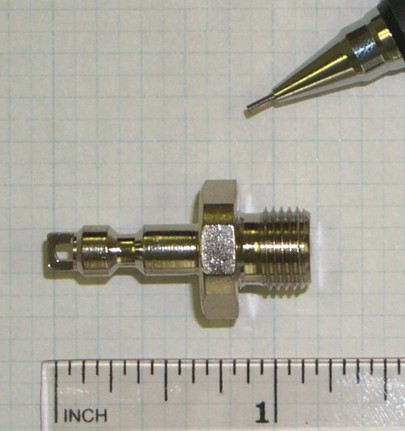

Brass, nickel plated	LP-002-1-WR010-23
Brass, chrome plated	LP-002-1-WR010-22
Standard materials in bold.

1/8" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-002-0-WR510-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-WR510-23-1	LP-002-0-WR510-23-2	LP-002-0-WR510-23-4
Brass, chrome plated	LP-002-0-WR510-22-1	LP-002-0-WR510-22-2	LP-002-0-WR510-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" BSPP(F), Thru type Nipple

Partial Part Number: LP-002-1-WR510-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

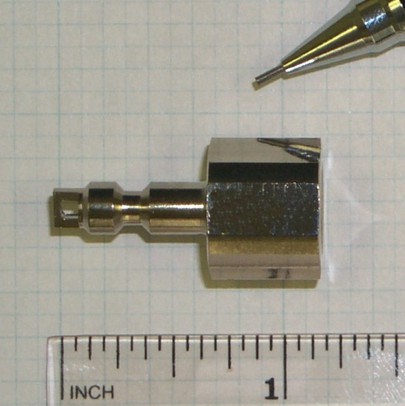

Brass, nickel plated	LP-002-1-WR510-23
Brass, chrome plated	LP-002-1-WR510-22
Standard materials in bold.

1/8" NPT(M), Self-sealing Coupling

Partial Part Number: LP-002-0-NP010-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-NP010-23-1	LP-002-0-NP010-23-2	LP-002-0-NP010-23-4
Brass, chrome plated	LP-002-0-NP010-22-1	LP-002-0-NP010-22-2	LP-002-0-NP010-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" NPT(M), Thru type Nipple

Partial Part Number: LP-002-1-NP010-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-002-1-NP010-23
Brass, chrome plated	LP-002-1-NP010-22
Standard materials in bold.

1/8" NPT(F), Self-sealing Coupling

Partial Part Number: LP-002-0-NP510-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-NP510-23-1	LP-002-0-NP510-23-2	LP-002-0-NP510-23-4
Brass, chrome plated	LP-002-0-NP510-22-1	LP-002-0-NP510-22-2	LP-002-0-NP510-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/8" NPT(F), Thru type Nipple

Partial Part Number: LP-002-1-NP510-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	LP-002-1-NP510-23
Brass, chrome plated	LP-002-1-NP510-22
Standard materials in bold.

5/32" Hose Barb (4mm), Self-sealing Coupling

Partial Part Number: LP-002-0-SL004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-SL004-23-1	LP-002-0-SL004-23-2	LP-002-0-SL004-23-4
Brass, chrome plated	LP-002-0-SL004-22-1	LP-002-0-SL004-22-2	LP-002-0-SL004-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

5/32" Hose Barb (4mm), Thru type Nipple

Partial Part Number: LP-002-1-SL004-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

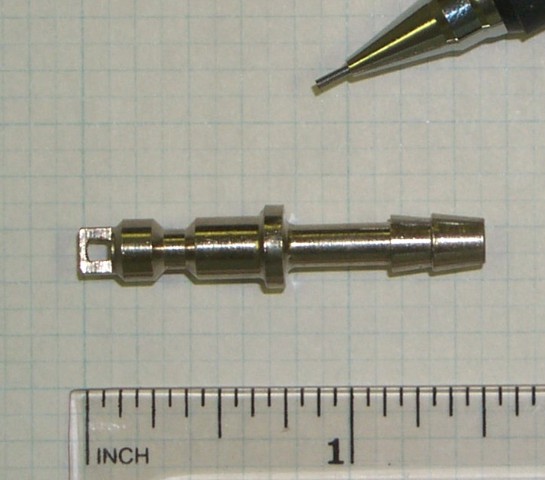

Brass, nickel plated	LP-002-1-SL004-23
Brass, chrome plated	LP-002-1-SL004-22
Standard materials in bold.

1/4" Hose Barb (6mm), Self-sealing Coupling

Partial Part Number: LP-002-0-SL006-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	LP-002-0-SL006-23-1	LP-002-0-SL006-23-2	LP-002-0-SL006-23-4
Brass, chrome plated	LP-002-0-SL006-22-1	LP-002-0-SL006-22-2	LP-002-0-SL006-22-4
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

1/4" Hose Barb (6mm), Thru type Nipple

Partial Part Number: LP-002-1-SL006-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

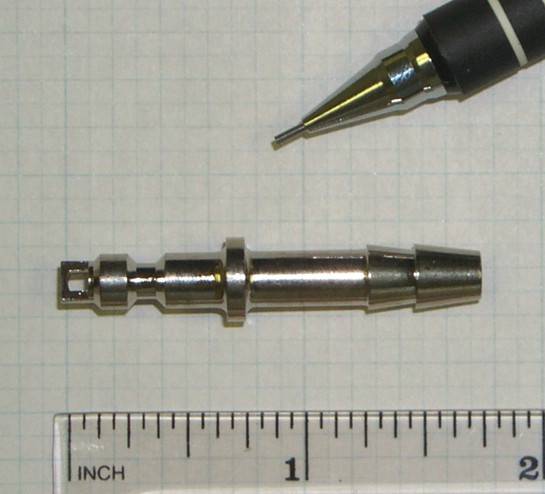

Brass, nickel plated	LP-002-1-SL006-23
Brass, chrome plated	LP-002-1-SL006-22
Standard materials in bold.
