Clean Break Couplings Series CT-007

• Part Numbers

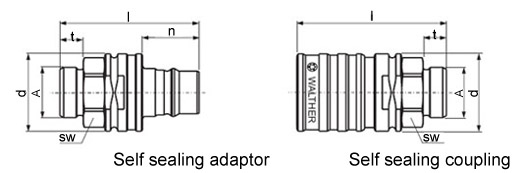

Self-Sealing Coupling Seals:FPM (viton) standard EPDM and FFKM available	Connection A	Series	Pipe OD	DN	d	SW	l	t	n	weight (g)
CT-007-0-NP017-02-2	NPT 3/8 A				32.7	25	78	12		260
CT-007-0-NP021-02-2	NPT 1/2 A				32.7	24	81	15		270
CT-007-0-WR017-02-2	G 3/8 A				32.7	25	78	12		260
CT-007-0-WR021-02-2	G 1/2 A				32.7	24	81	15		270
CT-007-0-VR017-02-2	G 3/8 A			7	32.7	24	78	12		250
CT-007-0-D0816-02-2	M 16 x 1.5			8	32.7	24	77	11		260
CT-007-0-DV010-02-2	M 16 x 1.5			8	32.7	24	99.5	33.5		270
CT-007-0-L1016-02-2	M 16 x 1.5	L	10	8	32.7	24	77	11		250
CT-007-0-L1218-02-2	M 18 x 1.5	L	12	10	32.7	24	77	11		250
CT-007-0-S1220-02-2	M 20 x 1.5	S	12	8	32.7	24	78	12		260
CT-007-0-NP517-02-2	NPT 3/8				32.7	24	78	14		270
CT-007-0-NP521-02-2	NPT 1/2				32.7	27	81	17		290
CT-007-0-WR517-02-2	G 3/8				32.7	24	78	14		270
CT-007-0-WR521-02-2	G 1/2				32.7	27	81	17		290
CT-007-0-SL009-02-2	9mm				32.7	24	96	30		260
CT-007-0-SL011-02-2	11mm				32.7	24	96	30		260
CT-007-0-SL013-02-2	13mm				32.7	24	96	30		270

Self-Sealing Adapter Seals:FPM (viton) standard EPDM and FFKM available	Connection A	Series	Pipe OD	DN	d	SW	l	t	n	weight (g)
CT-007-2-NP013-02-2	NPT 1/4 A				26	19	53	11	27	73
CT-007-2-NP017-02-2	NPT 3/8 A				26	19	54	12	27	78
CT-007-2-NP021-02-2	NPT 1/2 A				26	19	57	15	27	88
CT-007-2-WR013-02-2	G 1/4 A				26	19	53	11	27	73
CT-007-2-WR017-02-2	G 3/8 A				26	19	54	12	27	78
CT-007-2-WR021-02-2	G 1/2 A				26	19	57	15	27	88
CT-007-2-VR013-02-2	G 1/4 A			6	26	19	53	11	27	73
CT-007-2-VR017-02-2	G 3/8 A			6	26	19	54	12	27	78
CT-007-2-D0614-02-2	M 14 x 1.5			6	26	19	52	10	27	73
CT-007-2-DV008-02-2	M 14 x 1.5			6	26	19	74	32	27	93
CT-007-2-L0612-02-2	M 12 x 1.5	L	6	4	26	19	52	10	27	73
CT-007-2-L0814-02-2	M 14 x 1.5	L	8	6	26	19	52	10	27	73
CT-007-2-L1016-02-2	M 16 x 1.5	L	10	8	26	19	53	11	27	73
CT-007-2-L1218-02-2	M 18 x 1.5	L	12	10	26	19	53	11	27	73
CT-007-2-S1018-02-2	M 20 x 1.5	S	10	6	26	19	54	12	27	83
CT-007-2-S1220-02-2	M 20 x 1.5	S	12	8	26	22	54	12	27	93
CT-007-2-LV008-02-2	M 14 x 1.5	L	8	6	26	19	74	32	27	93
CT-007-2-XX211-02-2	M 16 x 1.5	L	10	8	26	19	74	32	27	103
CT-007-2-NP513-02-2	NPT 1/4				26	19	52	13	27	83
CT-007-2-NP517-02-2	NPT 3/8				26	22	53	14	27	83
CT-007-2-WR513-02-2	G 1/4				26	19	52	13	27	83
CT-007-2-WR517-02-2	G 3/8				26	22	53	14	27	83
CT-007-2-SL009-02-2	9mm				26	19	72	30	27	73
CT-007-2-SL011-02-2	11mm				26	19	72	30	27	73
CT-007-2-SL013-02-2	13mm				26	19	72	30	27	83
SK-033-9-22328-AAAA-T017	Coupling dust cap
SL-018-9-17325-AAAA-T028	Nipple dust cap
